【RA-Eco-RA6M4开发板评测】spi驱动单色LCD显示屏

使用SPI驱动单色LCD显示屏。

一、硬件部分

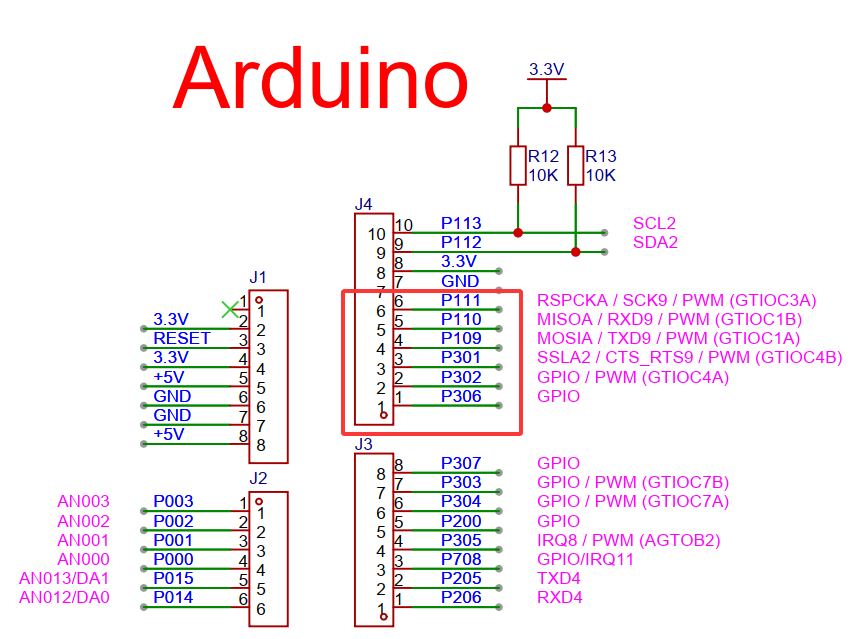

使用芯片的SPI0接口，使用的引脚如下

二、配置SPI

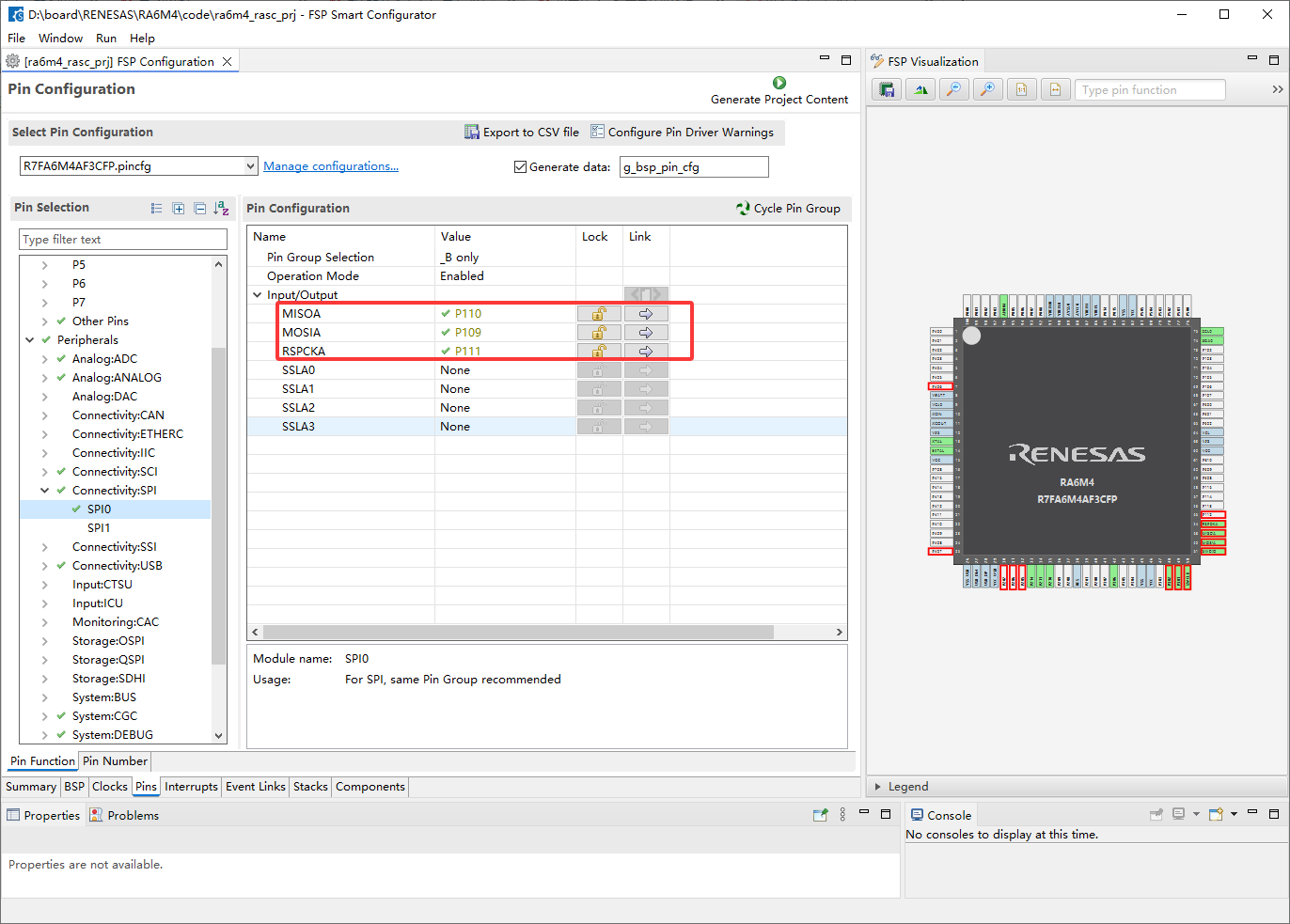

2.1、配置spi0引脚

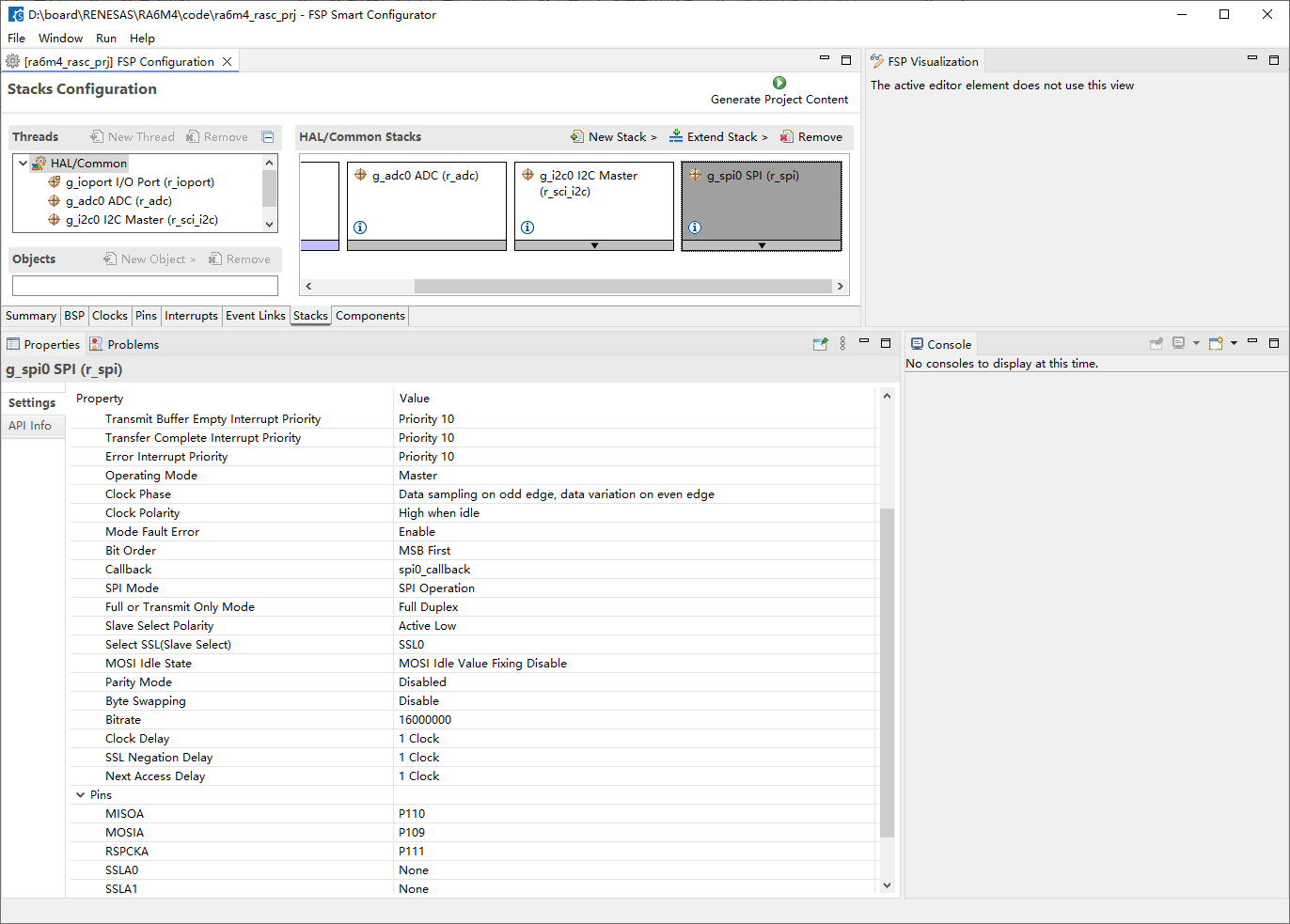

2.2、配置spi0参数

三、程序部分

3.1、fun_spi.c

#include "hal_data.h"
#include "spi/fun_spi.h"

volatile bool g_transfer_complete = false;

void spi0_callback(spi_callback_args_t *p_args)
{
  if(p_args->event == SPI_EVENT_TRANSFER_COMPLETE)
  {
    g_transfer_complete = true;
  }
}

bool SPIWaitgtc(void)
{
  unsigned short wTimeout = 100;
  while(!g_transfer_complete && wTimeout)
  {
      R_BSP_SoftwareDelay(1u, BSP_DELAY_UNITS_MICROSECONDS);
      wTimeout--;
  }
  g_transfer_complete = false;
  if(g_transfer_complete==false && wTimeout==0)
      return false;
  return true;
}

3.2、fun_jlx12864g.c

#include "hal_data.h"
#include "spi/fun_spi.h"
#include "lcd/fun_jlx12864g_font.h"
#include "lcd/fun_jlx12864g.h"


//[0]0 1 2 3 ... 127
//[1]0 1 2 3 ... 127
//[2]0 1 2 3 ... 127
//[3]0 1 2 3 ... 127
//[4]0 1 2 3 ... 127
//[5]0 1 2 3 ... 127
//[6]0 1 2 3 ... 127
//[7]0 1 2 3 ... 127
volatile static uint8_t lcdGram[128][8];


void lcd_writebyte(uint8_t dat)
{
	R_SPI_Write(&g_spi0_ctrl,&dat,1,SPI_BIT_WIDTH_8_BITS);
  SPIWaitgtc();
}


void lcd_jlx12864g_write_cmd(uint8_t cmd)
{
	uint8_t i=0;
	lcd_jlx12864g_cs_l();
	lcd_jlx12864g_rs_l();

	lcd_writebyte(cmd);
}

void lcd_jlx12864g_write_dat(uint8_t dat)
{
	uint8_t i=0;

	lcd_jlx12864g_cs_l();
	lcd_jlx12864g_rs_h();

	lcd_writebyte(dat);
}

void lcd_refreshGram(void)
{
	uint8_t i,n;
	for(i=0;i<8;i++)
	{

		lcd_jlx12864g_write_cmd (0xb0+i);  //write page
		lcd_jlx12864g_write_cmd (0x00);
		lcd_jlx12864g_write_cmd (0x10);
		for(n=0;n<128;n++)
			lcd_jlx12864g_write_dat(lcdGram[n][i]);
	}
}

void lcd_clear(void)
{
	uint8_t i,n;
	for(i=0;i<8;i++)
		for(n=0;n<128;n++)
			lcdGram[n][i]=0X00;
	lcd_refreshGram();
}

void lcd_drawPoint(uint8_t x,uint8_t y,uint8_t t)
{
	uint8_t pos,bx,temp=0;
	if(x>127||y>63)return;
	pos=7-y/8;
	bx=y%8;
	temp=1<<(7-bx);
	if(t)lcdGram[x][pos]|=temp;
	else lcdGram[x][pos]&=~temp;
}

//读点
//x:0~127
//y:0~63
uint8_t lcd_readPoint(uint8_t x,uint8_t y)
{
	uint8_t pos,bx,temp=0x00;
	//x = 127-x;
	y = 63-y;
	pos=y/8;
	bx=y%8;
	temp=1<<bx;
  if(temp&lcdGram[x][pos]) return 1;
	return 0;
}

//x1,y1,x2,y2 填充区域的对角坐标
//确保x1<=x2;y1<=y2 0<=x1<=127 0<=y1<=63
//dot:0,清空;1,填充
void lcd_fill(uint8_t x1,uint8_t y1,uint8_t x2,uint8_t y2,uint8_t dot)
{
	uint8_t x,y;
	for(x=x1;x<=x2;x++)
		for(y=y1;y<=y2;y++)
			lcd_drawPoint(x,y,dot);
//	oled_refreshGram();//更新显示
}


//在指定位置显示一个字符,包括部分字符
//x:0~127
//y:0~63
//f_w:字宽
//f_h:字高
//mode:0,反白显示;1,正常显示
void lcd_showChar(uint8_t x,uint8_t y,uint8_t chr,uint8_t f_w,uint8_t f_h,uint8_t mode)
{
	uint8_t temp,t,t1;
	uint8_t y0=y;
	uint8_t csize=(f_h/8+((f_h%8)?1:0))*f_w;
	chr=chr-' ';
	for(t=0;t<csize;t++)
	{
		if(f_w==6&&f_h==8)temp=asc2_0608[chr][t];
		else if(f_w==6&&f_h==12)temp=asc2_0612[chr][t];
		else if(f_w==12&&f_h==24)temp=asc2_1224[chr][t];
		else return;
		for(t1=0;t1<8;t1++)
		{
			if(temp&0x80)lcd_drawPoint(x,y,mode);
			else lcd_drawPoint(x,y,!mode);
			temp<<=1;
			y++;
			if((y-y0)==f_h)
			{
				y=y0;
				x++;
				break;
			}
		}
	}
}

//m^n函数
uint32_t mypow(uint8_t m,uint8_t n)
{
	uint32_t result=1;
	while(n--)result*=m;
	return result;
}

//显示2个数字
//x,y :起点坐标
//len :数字的位数
//f_w:字宽
//f_h:字高
//mode:模式	0,填充模式;1,叠加模式
//num:数值(0~4294967295);
void lcd_showNum(uint8_t x,uint8_t y,uint32_t num,uint8_t len,uint8_t f_w,uint8_t f_h)
{
	uint8_t t,temp;
	uint8_t enshow=0;
	for(t=0;t<len;t++)
	{
		temp=(num/mypow(10,len-t-1))%10;
		if(enshow==0&&t<(len-1))
		{
			if(temp==0)
			{
				lcd_showChar(x+(f_w)*t,y,' ',f_w,f_h,1);
				continue;
			}
			else
				enshow=1;
		}
	 	lcd_showChar(x+(f_w)*t,y,temp+'0',f_w,f_h,1);
	}
}

//显示字符串
//x,y:起点坐标
//f_w:字宽
//f_h:字高
//*p:字符串起始地址
void lcd_showString(uint8_t x,uint8_t y,const uint8_t *p,uint8_t f_w,uint8_t f_h)
{
    while((*p<='~')&&(*p>=' '))
    {
        if(x>(128-(f_w))){x=0;y+=f_h;}
        if(y>(64-f_h)){y=x=0;lcd_clear();}
        lcd_showChar(x,y,*p,f_w,f_h,1);
        x+=f_w;
        p++;
    }

}

//显示图片
//x,y:起点坐标
//p_w:图片宽（单位像素）
//p_h:图片高（单位像素）
//*p:图片起始地址
void lcd_showPicture(uint8_t x,uint8_t y,const uint8_t *p,uint8_t p_w,uint8_t p_h)
{
	uint8_t temp,i,col,row;
	uint8_t y0=y;
	uint8_t width=p_w;
	if(x+p_w>128)width=128-p_w;//实际显示宽度
	uint8_t high=p_h;
	if(y+p_h>64)high=64-p_h;//实际显示高度
	uint8_t exp_col_bytes=(p_h/8+((p_h%8)?1:0));//显示一列的字节数
	uint8_t act_col_bytes=(high/8+((high%8)?1:0));//实际显示一列的字节数

	for(row=0;row<width;row++)//列++
	{
		for(col=0;col<act_col_bytes;col++)//显示一列
		{
			temp = p[col+row*exp_col_bytes];
			for(i=0;i<8;i++)
			{
				if(temp&0x80)lcd_drawPoint(x,y,1);
				else lcd_drawPoint(x,y,0);
				temp<<=1;
				y++;
				if((y-y0)==high)
				{
					y=y0;
					x++;
					break;
				}
			}
		}
	}
}

void init_lcd_jlx12864g(void)
{
	fsp_err_t err = FSP_SUCCESS;
  err = R_SPI_Open(&g_spi0_ctrl,&g_spi0_cfg);//打开SPI模块
  assert(FSP_SUCCESS == err);

  R_BSP_SoftwareDelay(500u, BSP_DELAY_UNITS_MILLISECONDS);//延时500ms
	lcd_jlx12864g_cs_h();
	lcd_jlx12864g_rst_l();
	R_BSP_SoftwareDelay(200, BSP_DELAY_UNITS_MILLISECONDS);
	lcd_jlx12864g_rst_h();
	R_BSP_SoftwareDelay(200,     BSP_DELAY_UNITS_MILLISECONDS);
	lcd_jlx12864g_write_cmd(0xe2);
	lcd_jlx12864g_write_cmd(0x2c);
	lcd_jlx12864g_write_cmd(0x2e);
	lcd_jlx12864g_write_cmd(0x2f);
	lcd_jlx12864g_write_cmd(0x23);
	lcd_jlx12864g_write_cmd(0x81);
	lcd_jlx12864g_write_cmd(0x28);
	lcd_jlx12864g_write_cmd(0xa2);
	lcd_jlx12864g_write_cmd(0xc0);
	lcd_jlx12864g_write_cmd(0xa0);
	lcd_jlx12864g_write_cmd(0x40);
	lcd_jlx12864g_write_cmd(0xaf);
	lcd_clear();
}

3.3、fun_jlx12864.h

#ifndef __12864G_H
#define __12864G_H

#define LCD_JLX12864G_CS_PIN 				    BSP_IO_PORT_03_PIN_01
#define LCD_JLX12864G_RST_PIN 					BSP_IO_PORT_03_PIN_02
#define LCD_JLX12864G_RS_PIN 				    BSP_IO_PORT_03_PIN_06

#define lcd_jlx12864g_cs_l()		      	R_IOPORT_PinWrite(&g_ioport_ctrl, LCD_JLX12864G_CS_PIN, BSP_IO_LEVEL_LOW)
#define lcd_jlx12864g_cs_h() 		       	R_IOPORT_PinWrite(&g_ioport_ctrl, LCD_JLX12864G_CS_PIN, BSP_IO_LEVEL_HIGH)

#define lcd_jlx12864g_rs_l()				    R_IOPORT_PinWrite(&g_ioport_ctrl, LCD_JLX12864G_RS_PIN, BSP_IO_LEVEL_LOW)
#define lcd_jlx12864g_rs_h() 				    R_IOPORT_PinWrite(&g_ioport_ctrl, LCD_JLX12864G_RS_PIN, BSP_IO_LEVEL_HIGH)

#define lcd_jlx12864g_rst_l()			      R_IOPORT_PinWrite(&g_ioport_ctrl, LCD_JLX12864G_RST_PIN, BSP_IO_LEVEL_LOW)
#define lcd_jlx12864g_rst_h() 					R_IOPORT_PinWrite(&g_ioport_ctrl, LCD_JLX12864G_RST_PIN, BSP_IO_LEVEL_HIGH)

void lcd_refreshGram(void);
void lcd_clear(void) ;
void lcd_drawPoint(uint8_t x,uint8_t y,uint8_t t);
uint8_t lcd_readPoint(uint8_t x,uint8_t y);
void lcd_fill(uint8_t x1,uint8_t y1,uint8_t x2,uint8_t y2,uint8_t dot);
void lcd_showChar(uint8_t x,uint8_t y,uint8_t chr,uint8_t f_w,uint8_t f_h,uint8_t mode);
uint32_t mypow(uint8_t m,uint8_t n);
void lcd_showNum(uint8_t x,uint8_t y,uint32_t num,uint8_t len,uint8_t f_w,uint8_t f_h);
void lcd_showString(uint8_t x,uint8_t y,const uint8_t *p,uint8_t f_w,uint8_t f_h);
void lcd_showPicture(uint8_t x,uint8_t y,const uint8_t *p,uint8_t p_w,uint8_t p_h);
void init_lcd_jlx12864g(void);

#endif

3.4、hal_entry.c

#include "hal_data.h"
#include "led/fun_led.h"
#include "uart/fun_uart.h"
#include "adc/fun_adc.h"
#include "oled/fun_oled.h"
#include "lcd/fun_jlx12864g.h"

FSP_CPP_HEADER
void R_BSP_WarmStart(bsp_warm_start_event_t event);
FSP_CPP_FOOTER

/*******************************************************************************************************************//**
 * main() is generated by the RA Configuration editor and is used to generate threads if an RTOS is used.  This function
 * is called by main() when no RTOS is used.
 **********************************************************************************************************************/
void hal_entry(void)
{
	uint8_t num=0;
    /* TODO: add your own code here */
	init_led();
	init_lcd_jlx12864g();
	lcd_showString(0,0, (uint8_t*)"RA6M4_BOARD_TEST",6,12);
  lcd_showString(0,13,(uint8_t*)"MCU:R7FA6M4AF",6,12);
  lcd_showString(0,26,(uint8_t*)"JLX12864G-SPI",6,12);
  lcd_showString(0,39,(uint8_t*)"2025-08-10",6,12);
  lcd_refreshGram();

	while(1)
	{

		lcd_showNum(0,52,num++,4,6,12);
		lcd_refreshGram();
		R_BSP_SoftwareDelay(100, BSP_DELAY_UNITS_MILLISECONDS);
		led1_on();
		led2_off();
		led3_on();
		R_BSP_SoftwareDelay(100, BSP_DELAY_UNITS_MILLISECONDS);
		led1_off();
		led2_on();
		led3_off();
	}

#if BSP_TZ_SECURE_BUILD
    /* Enter non-secure code */
    R_BSP_NonSecureEnter();
#endif
}

四、运行结果
