1 简介

本文基于CanMV K230 的环境监控系统的详细方案与实现流程，结合硬件选型、软件部署、算法优化和系统集成。系统架构如下所示。

2 系统功能

1、识别能力

• 识别速度：< 300 ms（含活体）

• 准确率：≥ 99.5 %

2、监控逻辑

• 硬件 NPU 人形/宠物/车辆检测，误报低

• 事件触发 → 本地 JPG 截图 + MQTT 告警 → 微信群通知

• 环境MQTT 上报记录（JSON：ID、时间、抓拍图 base64）

3、管理后台

• Web 端（Python+ Django）

• 与安防系统联动：安防信号输入→报警

• 支持 HTTPS Web 端、微信小程序、Home-Assistant 插件

• HTTP RESTful API（远程监控、参数配置）

3 硬件架构

1、计算平台

• CanMV K230开发板

• 供电：5 V/2 A Type-C

2、数据采集

• MIPI-CSI 摄像头

• AHT10 温度度传感器

3、网络与交互

• 100 M 以太网/WiFi

4 软件与算法栈

4.1 人体检测

from libs.PipeLine import PipeLine
from libs.AIBase import AIBase
from libs.AI2D import Ai2d
from libs.Utils import *
import os,sys,ujson,gc,math
from media.media import *
import nncase_runtime as nn
import ulab.numpy as np
import image
import aicube

# 自定义人体检测类
class PersonDetectionApp(AIBase):
    def __init__(self,kmodel_path,model_input_size,labels,anchors,confidence_threshold=0.2,nms_threshold=0.5,nms_option=False,strides=[8,16,32],rgb888p_size=[224,224],display_size=[1920,1080],debug_mode=0):
        super().__init__(kmodel_path,model_input_size,rgb888p_size,debug_mode)
        self.kmodel_path=kmodel_path
        # 模型输入分辨率
        self.model_input_size=model_input_size
        # 标签
        self.labels=labels
        # 检测anchors设置
        self.anchors=anchors
        # 特征图降采样倍数
        self.strides=strides
        # 置信度阈值设置
        self.confidence_threshold=confidence_threshold
        # nms阈值设置
        self.nms_threshold=nms_threshold
        self.nms_option=nms_option
        # sensor给到AI的图像分辨率
        self.rgb888p_size=[ALIGN_UP(rgb888p_size[0],16),rgb888p_size[1]]
        # 显示分辨率
        self.display_size=[ALIGN_UP(display_size[0],16),display_size[1]]
        self.debug_mode=debug_mode
        # Ai2d实例，用于实现模型预处理
        self.ai2d=Ai2d(debug_mode)
        # 设置Ai2d的输入输出格式和类型
        self.ai2d.set_ai2d_dtype(nn.ai2d_format.NCHW_FMT,nn.ai2d_format.NCHW_FMT,np.uint8, np.uint8)

    # 配置预处理操作，这里使用了pad和resize，Ai2d支持crop/shift/pad/resize/affine，具体代码请打开/sdcard/app/libs/AI2D.py查看
    def config_preprocess(self,input_image_size=None):
        with ScopedTiming("set preprocess config",self.debug_mode > 0):
            # 初始化ai2d预处理配置，默认为sensor给到AI的尺寸，您可以通过设置input_image_size自行修改输入尺寸
            ai2d_input_size=input_image_size if input_image_size else self.rgb888p_size
            top,bottom,left,right,_=center_pad_param(self.rgb888p_size,self.model_input_size)
            self.ai2d.pad([0,0,0,0,top,bottom,left,right], 0, [0,0,0])
            self.ai2d.resize(nn.interp_method.tf_bilinear, nn.interp_mode.half_pixel)
            self.ai2d.build([1,3,ai2d_input_size[1],ai2d_input_size[0]],[1,3,self.model_input_size[1],self.model_input_size[0]])

    # 自定义当前任务的后处理
    def postprocess(self,results):
        with ScopedTiming("postprocess",self.debug_mode > 0):
            # 这里使用了aicube模型的后处理接口anchorbasedet_post_preocess
            dets = aicube.anchorbasedet_post_process(results[0], results[1], results[2], self.model_input_size, self.rgb888p_size, self.strides, len(self.labels), self.confidence_threshold, self.nms_threshold, self.anchors, self.nms_option)
            return dets

    # 绘制结果
    def draw_result(self,pl,dets):
        with ScopedTiming("display_draw",self.debug_mode >0):
            if dets:
                pl.osd_img.clear()
                for det_box in dets:
                    x1, y1, x2, y2 = det_box[2],det_box[3],det_box[4],det_box[5]
                    w = float(x2 - x1) * self.display_size[0] // self.rgb888p_size[0]
                    h = float(y2 - y1) * self.display_size[1] // self.rgb888p_size[1]
                    x1 = int(x1 * self.display_size[0] // self.rgb888p_size[0])
                    y1 = int(y1 * self.display_size[1] // self.rgb888p_size[1])
                    x2 = int(x2 * self.display_size[0] // self.rgb888p_size[0])
                    y2 = int(y2 * self.display_size[1] // self.rgb888p_size[1])
                    if (h<(0.1*self.display_size[0])):
                        continue
                    if (w<(0.25*self.display_size[0]) and ((x1<(0.03*self.display_size[0])) or (x2>(0.97*self.display_size[0])))):
                        continue
                    if (w<(0.15*self.display_size[0]) and ((x1<(0.01*self.display_size[0])) or (x2>(0.99*self.display_size[0])))):
                        continue
                    pl.osd_img.draw_rectangle(x1 , y1 , int(w) , int(h), color=(255, 0, 255, 0), thickness = 2)
                    pl.osd_img.draw_string_advanced( x1 , y1-50,32, " " + self.labels[det_box[0]] + " " + str(round(det_box[1],2)), color=(255,0, 255, 0))
            else:
                pl.osd_img.clear()

4.2 MQTTClient

import usocket as socket
import ustruct as struct
from ubinascii import hexlify

class MQTTException(Exception):
    pass

class MQTTClient:

    def __init__(self, client_id, server, port=0, user=None, password=None, keepalive=0,
                 ssl=False, ssl_params={}):
        if port == 0:
            port = 8883 if ssl else 1883
        self.client_id = client_id
        self.sock = None
        self.server = server
        self.port = port
        self.ssl = ssl
        self.ssl_params = ssl_params
        self.pid = 0
        self.cb = None
        self.user = user
        self.pswd = password
        self.keepalive = keepalive
        self.lw_topic = None
        self.lw_msg = None
        self.lw_qos = 0
        self.lw_retain = False

    def _send_str(self, s):
        self.sock.write(struct.pack("!H", len(s)))
        self.sock.write(s)

    def _recv_len(self):
        n = 0
        sh = 0
        while 1:
            b = self.sock.read(1)[0]
            n |= (b & 0x7f) << sh
            if not b & 0x80:
                return n
            sh += 7

    def set_callback(self, f):
        self.cb = f

    def set_last_will(self, topic, msg, retain=False, qos=0):
        assert 0 <= qos <= 2
        assert topic
        self.lw_topic = topic
        self.lw_msg = msg
        self.lw_qos = qos
        self.lw_retain = retain

    def connect(self, clean_session=True):
        self.sock = socket.socket()
        addr = socket.getaddrinfo(self.server, self.port)[0][-1]
        self.sock.connect(addr)
        if self.ssl:
            import ussl
            self.sock = ussl.wrap_socket(self.sock, **self.ssl_params)
        premsg = bytearray(b"\x10\0\0\0\0\0")
        msg = bytearray(b"\x04MQTT\x04\x02\0\0")

        sz = 10 + 2 + len(self.client_id)
        msg[6] = clean_session << 1
        if self.user is not None:
            sz += 2 + len(self.user) + 2 + len(self.pswd)
            msg[6] |= 0xC0
        if self.keepalive:
            assert self.keepalive < 65536
            msg[7] |= self.keepalive >> 8
            msg[8] |= self.keepalive & 0x00FF
        if self.lw_topic:
            sz += 2 + len(self.lw_topic) + 2 + len(self.lw_msg)
            msg[6] |= 0x4 | (self.lw_qos & 0x1) << 3 | (self.lw_qos & 0x2) << 3
            msg[6] |= self.lw_retain << 5

        i = 1
        while sz > 0x7f:
            premsg[i] = (sz & 0x7f) | 0x80
            sz >>= 7
            i += 1
        premsg[i] = sz

        self.sock.write(premsg, i + 2)
        self.sock.write(msg)
        #print(hex(len(msg)), hexlify(msg, ":"))
        self._send_str(self.client_id)
        if self.lw_topic:
            self._send_str(self.lw_topic)
            self._send_str(self.lw_msg)
        if self.user is not None:
            self._send_str(self.user)
            self._send_str(self.pswd)
        resp = self.sock.read(4)
        assert resp[0] == 0x20 and resp[1] == 0x02
        if resp[3] != 0:
            raise MQTTException(resp[3])
        return resp[2] & 1

    def disconnect(self):
        self.sock.write(b"\xe0\0")
        self.sock.close()

    def ping(self):
        self.sock.write(b"\xc0\0")

    def publish(self, topic, msg, retain=False, qos=0):
        pkt = bytearray(b"\x30\0\0\0")
        pkt[0] |= qos << 1 | retain
        sz = 2 + len(topic) + len(msg)
        if qos > 0:
            sz += 2
        assert sz < 2097152
        i = 1
        while sz > 0x7f:
            pkt[i] = (sz & 0x7f) | 0x80
            sz >>= 7
            i += 1
        pkt[i] = sz
        #print(hex(len(pkt)), hexlify(pkt, ":"))
        self.sock.write(pkt, i + 1)
        self._send_str(topic)
        if qos > 0:
            self.pid += 1
            pid = self.pid
            struct.pack_into("!H", pkt, 0, pid)
            self.sock.write(pkt, 2)
        self.sock.write(msg)
        if qos == 1:
            while 1:
                op = self.wait_msg()
                if op == 0x40:
                    sz = self.sock.read(1)
                    assert sz == b"\x02"
                    rcv_pid = self.sock.read(2)
                    rcv_pid = rcv_pid[0] << 8 | rcv_pid[1]
                    if pid == rcv_pid:
                        return
        elif qos == 2:
            assert 0

    def subscribe(self, topic, qos=0):
        assert self.cb is not None, "Subscribe callback is not set"
        pkt = bytearray(b"\x82\0\0\0")
        self.pid += 1
        struct.pack_into("!BH", pkt, 1, 2 + 2 + len(topic) + 1, self.pid)
        #print(hex(len(pkt)), hexlify(pkt, ":"))
        self.sock.write(pkt)
        self._send_str(topic)
        self.sock.write(qos.to_bytes(1, "little"))
        while 1:
            op = self.wait_msg()
            if op == 0x90:
                resp = self.sock.read(4)
                #print(resp)
                assert resp[1] == pkt[2] and resp[2] == pkt[3]
                if resp[3] == 0x80:
                    raise MQTTException(resp[3])
                return

    # Wait for a single incoming MQTT message and process it.
    # Subscribed messages are delivered to a callback previously
    # set by .set_callback() method. Other (internal) MQTT
    # messages processed internally.
    def wait_msg(self):
        res = self.sock.read(1)
        self.sock.setblocking(True)
        if res is None:
            return None
        if res == b"":
            raise OSError(-1)
        if res == b"\xd0":  # PINGRESP
            sz = self.sock.read(1)[0]
            assert sz == 0
            return None
        op = res[0]
        if op & 0xf0 != 0x30:
            return op
        sz = self._recv_len()
        topic_len = self.sock.read(2)
        topic_len = (topic_len[0] << 8) | topic_len[1]
        topic = self.sock.read(topic_len)
        sz -= topic_len + 2
        if op & 6:
            pid = self.sock.read(2)
            pid = pid[0] << 8 | pid[1]
            sz -= 2
        msg = self.sock.read(sz)
        self.cb(topic, msg)
        if op & 6 == 2:
            pkt = bytearray(b"\x40\x02\0\0")
            struct.pack_into("!H", pkt, 2, pid)
            self.sock.write(pkt)
        elif op & 6 == 4:
            assert 0

    # Checks whether a pending message from server is available.
    # If not, returns immediately with None. Otherwise, does
    # the same processing as wait_msg.
    def check_msg(self):
        self.sock.setblocking(False)
        return self.wait_msg()


## MQTT
import network,time

class MQTT:
    def __init__(self, client_id, server, port):
        self.client = MQTTClient(client_id, server, port)
        self.client.connect()

    def mqtt_pub(self, topic, message):
        self.client.publish(topic, message)

4.3 AHT10

from machine import Pin
from machine import FPIOA, I2C
import time

# AHT10 设备地址和命令
AHT10_ADDR = 0x38
AHT10_TRIG_MEAS = 0xAC

class AHT10:
    def __init__(self, hard_flag=True, i2c_bus=2, sda_pin=12, scl_pin=11, freq=400000):
        # 初始化 I2C 总线
        if hard_flag:
            fpioa = FPIOA()
            fpioa.set_function(scl_pin, FPIOA.IIC2_SCL)
            fpioa.set_function(sda_pin, FPIOA.IIC2_SDA)
            self.i2c=I2C(i2c_bus, freq = freq)
            print(self.i2c.scan())
        else:
            self.i2c = I2C(i2c_bus, scl=scl_pin, sda=sda_pin, freq=freq)
            print(self.i2c.scan())

    def aht10_get_data(self):
        self.i2c.writeto(AHT10_ADDR, bytearray([AHT10_TRIG_MEAS])) # AHT10_TRIG_MEAS

        # 等待测量完成 (状态位bit7=0)
        timeout = 100
        while timeout > 0:
            status = self.i2c.readfrom(AHT10_ADDR, True)[0]
            if not (status & 0x80):  # 检查忙标志
                break
            time.sleep_ms(10)
            timeout -= 1

        if timeout <= 0:
            raise OSError("AHT10 测量超时")

        # 读取6字节数据
        data = self.i2c.readfrom(AHT10_ADDR, 6)

        # 解析湿度和温度原始值
        hum_raw = ((data[1] << 16) | (data[2] << 8) | data[3]) >> 4
        temp_raw = ((data[3] & 0x0F) << 16) | (data[4] << 8) | data[5]

        # 转换为实际值
        humidity = (hum_raw / (2**20)) * 100
        temperature = (temp_raw / (2**20)) * 200 - 50
        return temperature, humidity

    def run(self):
        while True:
            temp, hum = self.aht10_get_data()
            print(f"温度: {temp:.1f}°C, 湿度: {hum:.1f}%")
            time.sleep(2)  # AHT10最小测量间隔0.5秒

4.4 WiFi

import network,time
from machine import Pin

class WIFI:
    def __init__(self, state_pin=52, ssid='Wifi_2G', passwork='12345678'):
        self.wifi_led = Pin(state_pin, Pin.OUT) #初始化WIFI指示灯
        self.wlan = network.WLAN(network.STA_IF) #STA模式
        self.ssid = ssid
        self.passwork = passwork

    def wifi_status(self):
        return self.wlan.isconnected()

    # WIFI连接函数
    def wifi_connect(self):
        self.wlan.active(True) #激活接口

        if not self.wifi_status():
            print('connecting to network...')
            for i in range(3): #重复连接3次
                #输入WIFI账号密码（仅支持2.4G信号）, 连接超过5秒为超时
                self.wlan.connect(self.ssid, self.passwork)
                if self.wlan.isconnected(): #连接成功
                    break

        if self.wifi_status(): #连接成功
            print('connect success')

            #LED蓝灯点亮
            self.wifi_led.value(1)

            #等待获取IP地址
            while self.wlan.ifconfig()[0] == '0.0.0.0':
                pass

            #串口打印信息
            print('network information:', self.wlan.ifconfig())

        else: #连接失败
            #LED闪烁3次提示
            for i in range(10):
                self.wifi_led.value(1)
                time.sleep_ms(300)
                self.wifi_led.value(0)
                time.sleep_ms(300)
            #wlan.active(False)

核心逻辑如下：

import _thread #导入线程模块
from libs.PipeLine import PipeLine
from libs.AIBase import AIBase
from libs.AI2D import Ai2d
from libs.Utils import *
import nncase_runtime as nn
import ulab.numpy as np
import aidemo
from media.display import *
from media.media import *
from media.sensor import *
import time, os, sys, gc
import lvgl as lv
from machine import TOUCH
from machine import RTC

## mqtt wifi
WIFI_SSID = 'Wifi_2G'
PASSWORK = '12345678'

SERVER = 'mq.tongxinmao.com'
PORT = 18830

CLIENT_ID = 'CanMV-K230' # 客户端ID
TOPIC_AHT10 = 'canmv/sensor/aht10' # TOPIC名称
TOPIC_CAMERA = 'canmv/sensor/camera' # TOPIC名称


DISPLAY_WIDTH = ALIGN_UP(800, 16)
DISPLAY_HEIGHT = 480

sensor = None
rgb888p_size=[1280,720]
display_size = [800, 480]
lock = _thread.allocate_lock()

def media_init():
    global sensor,osd_img,rgb888p_size,display_size,face_osd_img,yolo_osd_img
    Display.init(Display.ST7701, width = DISPLAY_WIDTH, height = DISPLAY_HEIGHT, to_ide = True, osd_num=3)
    sensor = Sensor(fps=30)
    sensor.reset()
    sensor.set_framesize(w = 800, h = 480,chn=CAM_CHN_ID_0)
    sensor.set_pixformat(Sensor.YUV420SP)
    sensor.set_framesize(w = rgb888p_size[0], h = rgb888p_size[1], chn=CAM_CHN_ID_2)
    sensor.set_pixformat(Sensor.RGBP888, chn=CAM_CHN_ID_2)

    sensor_bind_info = sensor.bind_info(x = 0, y = 0, chn = CAM_CHN_ID_0)
    Display.bind_layer(**sensor_bind_info, layer = Display.LAYER_VIDEO1)
    face_osd_img = image.Image(display_size[0], display_size[1], image.ARGB8888)
    yolo_osd_img = image.Image(display_size[0], display_size[1], image.ARGB8888)
    MediaManager.init()
    sensor.run()

def media_deinit():
    global sensor
    os.exitpoint(os.EXITPOINT_ENABLE_SLEEP)
    sensor.stop()
    Display.deinit()
    time.sleep_ms(50)
    MediaManager.deinit()

def save_img(img):
    if img.format() == image.YUV420:
        suffix = "yuv420sp"
    elif img.format() == image.RGB888:
        suffix = "rgb888"
    elif img.format() == image.RGBP888:
        suffix = "rgb888p"
    else:
        suffix = "unkown"

    filename = f"/sdcard/camera_{img.width()}x{img.height()}.{suffix}"
    print("save capture image to file:", filename)

    img.save(filename)
    return filename

##  线程函数
def wifi_thread(arg):
    wf = WIFI(52, WIFI_SSID, PASSWORK)
    wf.wifi_connect()
    retry = 0
    count = 0

    while True:
        count = count+1
        print("wifi thread, {} ".format(count))
        with lock:
            if not wf.wifi_status():
                retry = retry+1
                wf.wifi_connect()
                print("重新连接，重连次数 {} 次".format(retry))
        time.sleep(15)

def sensor_thread(arg):
    count = 0
    # 添加显示模式，默认hdmi
    display_mode="hdmi"
    # k230保持不变，k230d可调整为[640,360]
    rgb888p_size = [1280, 720]
    # 模型路径
    kmodel_path="/sdcard/examples/kmodel/person_detect_yolov5n.kmodel"
    # 其它参数设置
    confidence_threshold = 0.2
    nms_threshold = 0.6
    labels = ["person"]
    anchors = [10, 13, 16, 30, 33, 23, 30, 61, 62, 45, 59, 119, 116, 90, 156, 198, 373, 326]

    # 初始化自定义人体检测实例
    person_det=PersonDetectionApp(kmodel_path,model_input_size=[640,640],labels=labels,anchors=anchors,confidence_threshold=confidence_threshold,nms_threshold=nms_threshold,nms_option=False,strides=[8,16,32],rgb888p_size=rgb888p_size,display_size=display_size,debug_mode=0)
    person_det.config_preprocess()
    mqtt = MQTT(CLIENT_ID, SERVER, PORT)
    ah = AHT10(True, 2, 12, 11,  400 * 1000)
    while True:
        time.sleep(1)
        count = count+1
        print("sensor thread, {} ".format(count))

        # with ScopedTiming("total",1):

        # 推理当前帧
        img = sensor.snapshot(chn = CAM_CHN_ID_2)
        img_np =img.to_numpy_ref()
        with lock:
            res=person_det.run(img_np)
            if res:
                length = len(res)
                print(f"Number of human bodies: {length}, {res}") # 打印结果
                # save_img(img)
                print(f'监控检测到人体，请及时查看监控！')

                mqtt.mqtt_pub(TOPIC_CAMERA, f'{{"Number":{length}}}')

                #import ubinascii
                #jpg_buf = img.compress(quality=70)  # JPEG压缩
                #mqtt.mqtt_pub(TOPIC_CAMERA, ubinascii.b2a_base64(jpg_buf))

            if ((count % 10) == 0):
                temp, hum = ah.aht10_get_data()
                print(f"温度: {temp:.1f}°C, 湿度: {hum:.1f}%")
                # message = f"temp: {temp:.1f}C, hum: {hum:.1f}%"
                # mqtt.mqtt_pub(TOPIC_AHT10, message)
                mqtt.mqtt_pub(TOPIC_AHT10, f'{{"temp":{temp}, "hum":{hum}}}')

        if count > 65536 :
            count = 0
        # 显示当前的绘制结果
        gc.collect()

    person_det.deinit()

def start_run():
    media_init()
    _thread.start_new_thread(wifi_thread, ("wifi_thread",)) #开启线程1,参数必须是元组
    _thread.start_new_thread(sensor_thread,("sensor_thread",)) #开启线程2，参数必须是元组
    while True:
        time.sleep_ms(5) #防止CPU满跑

if __name__ == '__main__':
    start_run()

5 系统演示

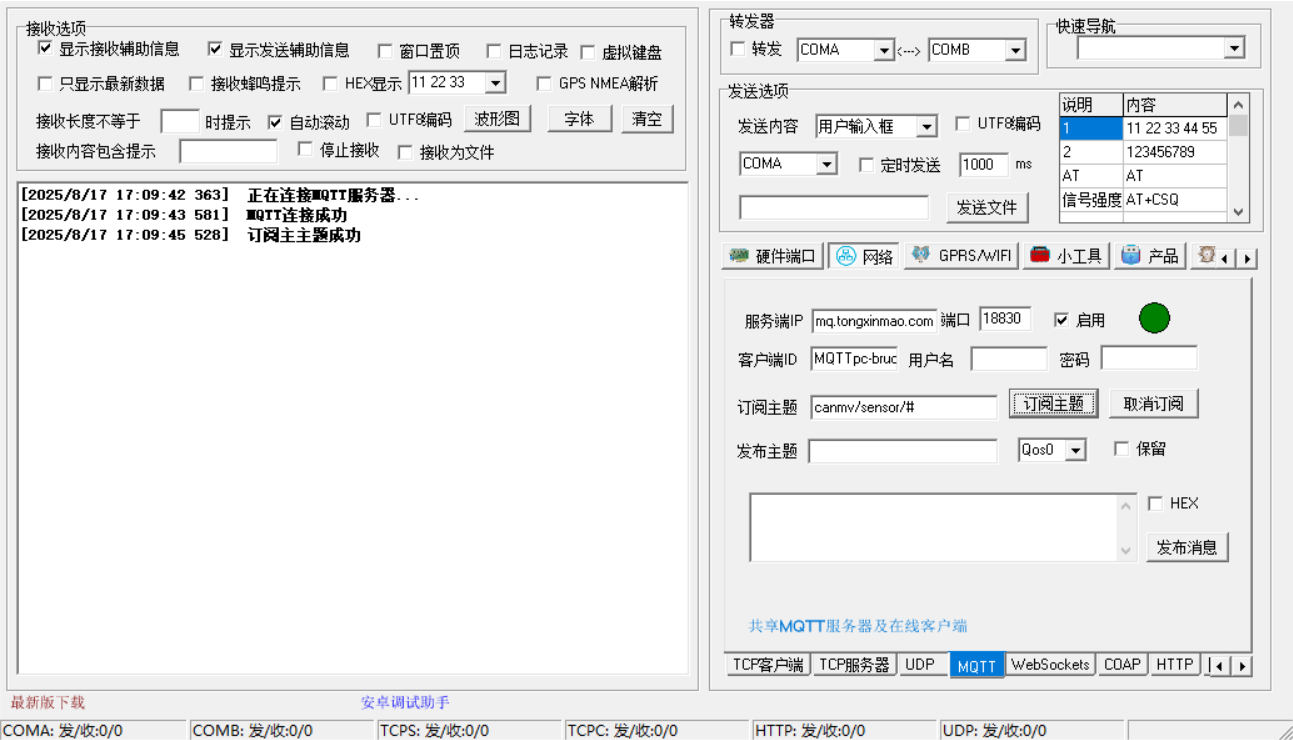

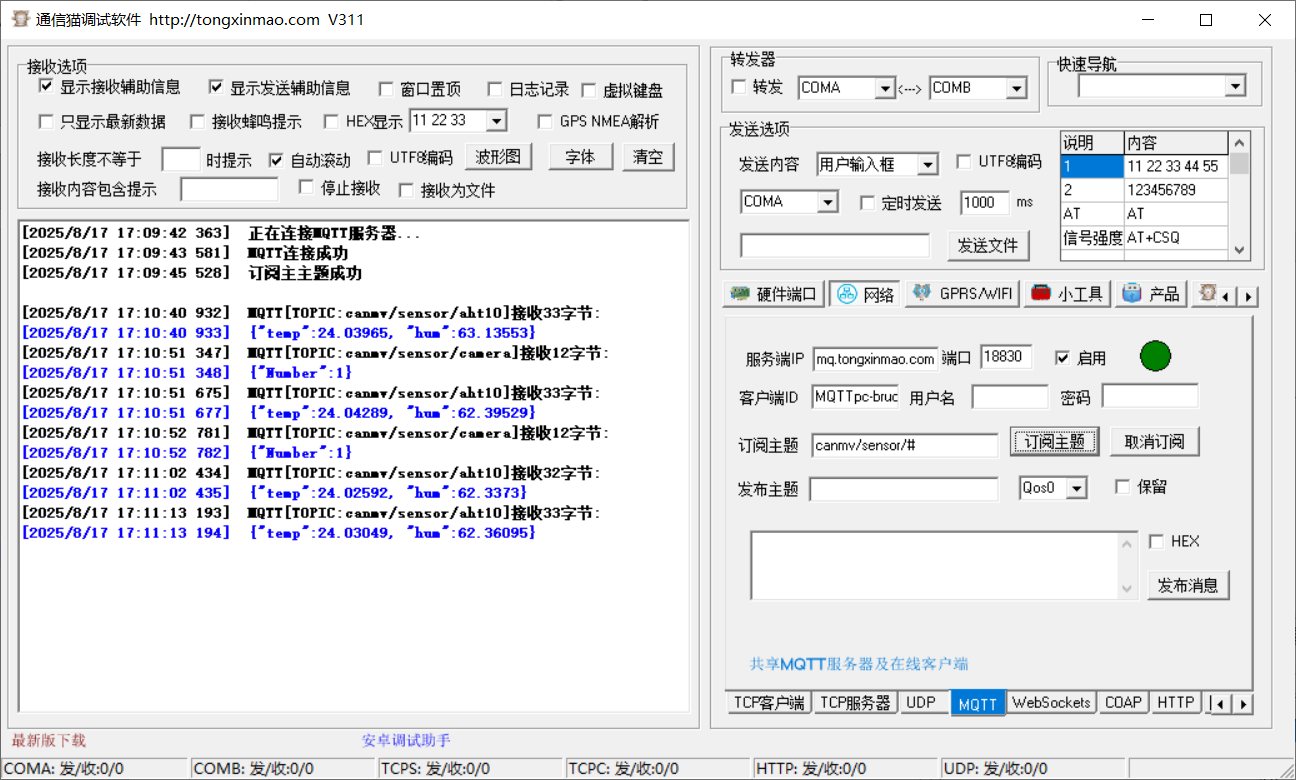

订阅者演示：

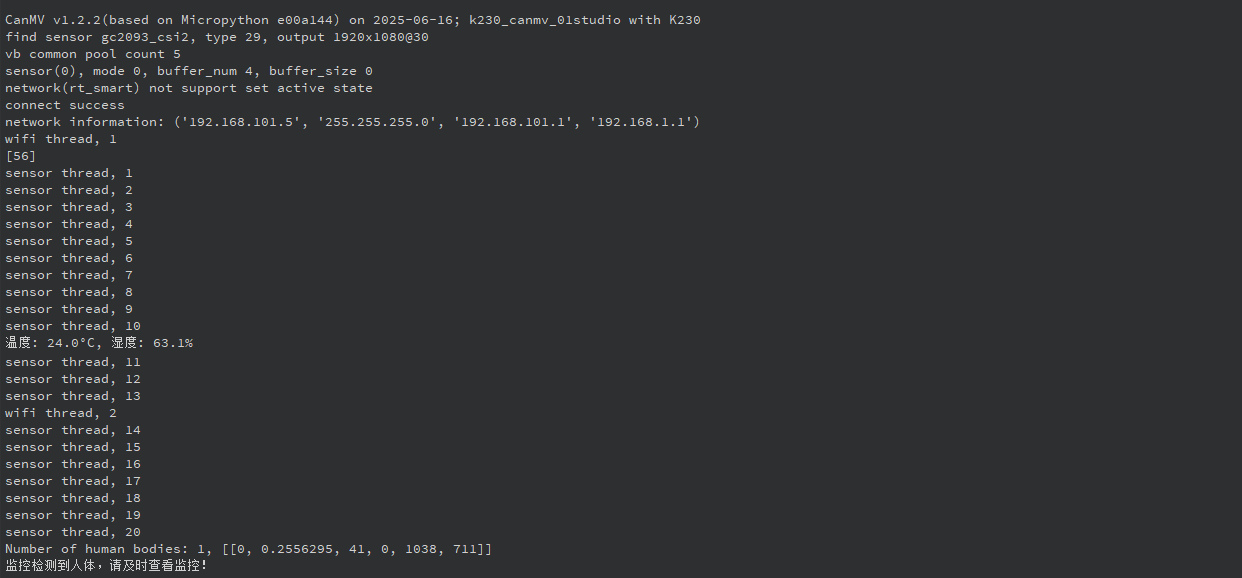

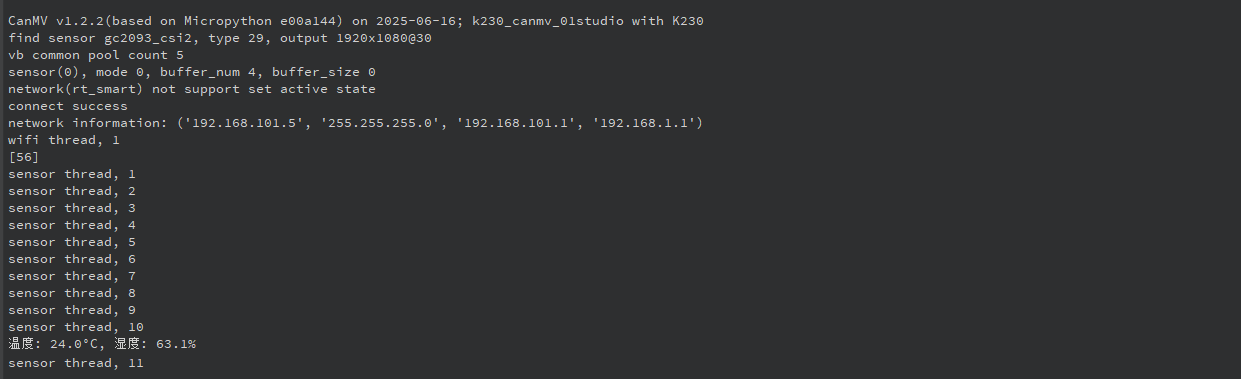

开发板端调试信息：
