【正点原子RK3506】安装交叉编译器、adb和编译运行SOEM控制EtherCAT IO从站

SOEM

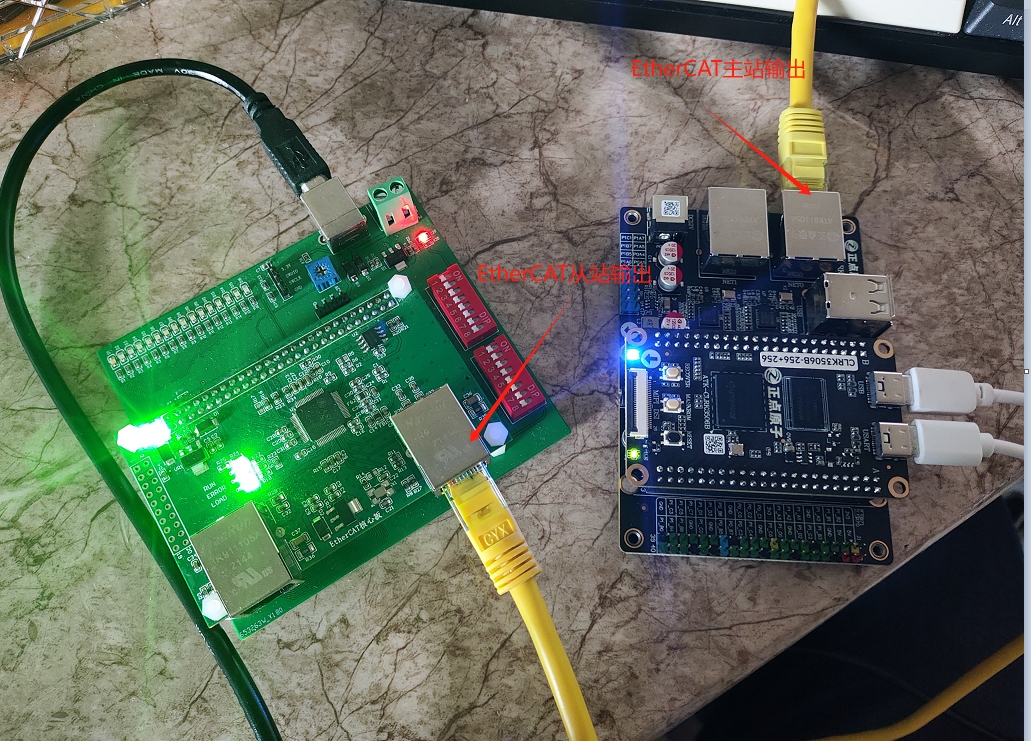

最近入手一块正点原子的ATK-RK3506开发板，在开发板上运行SOEM来控制EtherCAT从站IO。

1.1 编译SOEM

使用正点原子提供的虚拟机开发环境，根据《13【正点原子】基于Buildroot系统_交叉编译器安装与使用参考手册V1.1》中的说明，安装相应的交叉编译器。

./atk-DLRK3506-toolchain-arm-buildroot-linux-gnueabihf-x86_64-20240320-v1.0.run

参考《16【正点原子】adb工具使用说明V1.1》安装adb工具。交叉编译器和adb工具安装完成后，在$HOME/.bashrc中添加下述配置，便于后续的开发。

SOEM(Simple Opensource EtherCAT Master)协议栈是很便于使用的开源EtherCAT Master主站协议栈。下载SOEM源码。

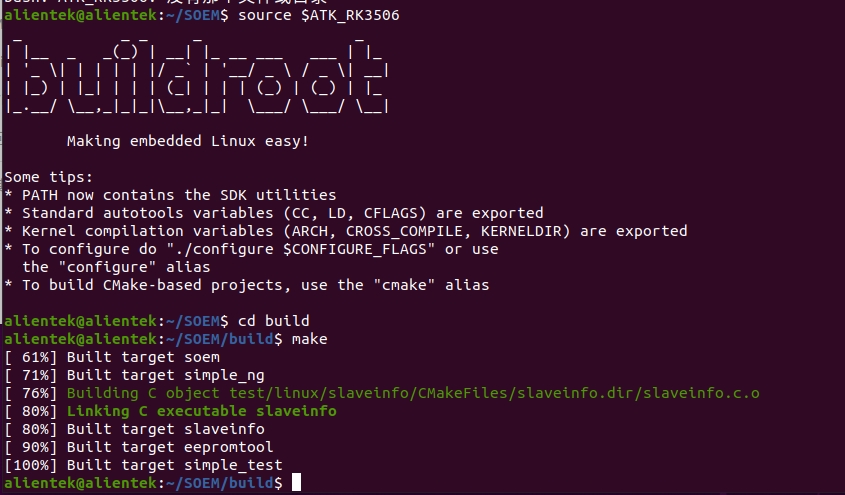

将下载依次执行下列指令，完成SOEM代码的编译。

source $ATK_RK3506 #由于之前在`$HOME/.bashrc`中配置交叉编译器的配置脚本，这里使用source指令导入交叉编译器的配置
cd SOEM
mkdir -p build
cd build
cmake ..
make

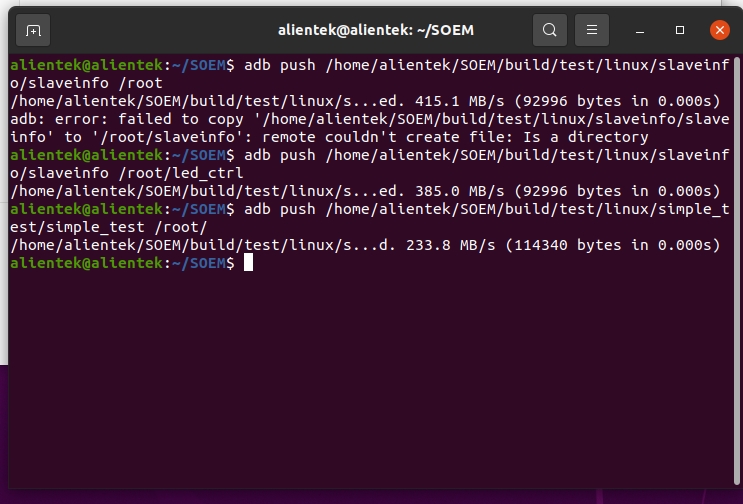

编写以下代码，将其替换掉slaveinfo中的代码

#include <stdlib.h>
#include <sched.h>
#include <stdio.h>
#include <string.h>
#include <time.h>
#include <pthread.h>
#include <math.h>

#include "osal.h"
#include "ethercattype.h"
#include "nicdrv.h"
#include "ethercatbase.h"
#include "ethercatmain.h"
#include "ethercatdc.h"
#include "ethercatcoe.h"
#include "ethercatfoe.h"
#include "ethercatconfig.h"
#include "ethercatprint.h"
#include "ethercat.h"


static char IOmap[1024];

volatile uint8_t mode = 0;
static uint8_t slave = 1;

static volatile boolean inOP;
volatile int wkc;

int expectedWKC;
uint8 currentgroup = 0;
uint16 output_fsm=0;


void show_slave_info()
{
    for (int cnt = 1; cnt <= ec_slavecount; cnt++)
    {
        printf("\nSlave:%d\n Name:%s\n Output size: %dbits\n Input size: %dbits\n State: %d\n Delay: %d[ns]\n Has DC: %d\n",cnt, ec_slave[cnt].name, ec_slave[cnt].Obits,ec_slave[cnt].Ibits, ec_slave[cnt].state,ec_slave[cnt].pdelay, ec_slave[cnt].hasdc);
        printf(" Activeports:%d.%d.%d.%d\n", (ec_slave[cnt].activeports & 0x01) > 0 ,(ec_slave[cnt].activeports & 0x02) > 0 ,(ec_slave[cnt].activeports & 0x04) > 0 ,(ec_slave[cnt].activeports & 0x08)>0 );
        printf(" Configured address: %x\n", ec_slave[cnt].configadr);
        printf(" Outputs address: %p\n", ec_slave[cnt].outputs);
        printf(" Inputs address: %p\n", ec_slave[cnt].inputs);

        for (int j = 0; j < ec_slave[cnt].FMMUunused; j++)
        {
            printf(" FMMU%1d Ls:%x Ll:%4d Lsb:%d Leb:%d Ps:%x Psb:%d Ty:%x Act:%x\n", j, \
                    (int) ec_slave[cnt].FMMU[j].LogStart, ec_slave[cnt].FMMU[j].LogLength, \
                    ec_slave[cnt].FMMU[j].LogStartbit, ec_slave[cnt].FMMU[j].LogEndbit, \
                    ec_slave[cnt].FMMU[j].PhysStart, ec_slave[cnt].FMMU[j].PhysStartBit, \
                    ec_slave[cnt].FMMU[j].FMMUtype, ec_slave[cnt].FMMU[j].FMMUactive);
        }
        printf(" FMMUfunc 0:%d 1:%d 2:%d 3:%d\n", ec_slave[cnt].FMMU0func, ec_slave[cnt].FMMU1func, \
                ec_slave[cnt].FMMU2func, ec_slave[cnt].FMMU3func);
    }
}


int main(void)
{
    const char *ifname = "eth0";
    ecx_context.manualstatechange = 1;

    printf("Test LED \r\n");

    if (ecx_init(&ecx_context, ifname))
    {
    	printf("EtherCAT Init NIC\r\n");
        wkc = ecx_config_init(&ecx_context, FALSE);

        if (wkc > 0)
        {
            printf("wkc is %d\r\n",wkc);
            ecx_context.slavelist[slave].state = EC_STATE_PRE_OP;
            ecx_writestate(&ecx_context, slave);
            ecx_statecheck(&ecx_context, slave, EC_STATE_PRE_OP, 5000);
            if (ecx_context.slavelist[slave].state != EC_STATE_PRE_OP)
            {
                ecx_readstate(&ecx_context);
                for(int i = 1; i <= *(ecx_context.slavecount) ; i++)
                {
                    if(ecx_context.slavelist[i].state != EC_STATE_PRE_OP)
                    {
                    }
                }
            }

            ecx_configdc(&ecx_context);
            ecx_config_map_group(&ecx_context, &IOmap, currentgroup);

            expectedWKC = (ec_group[0].outputsWKC * 2) + ec_group[0].inputsWKC;

            ecx_context.slavelist[slave].state = EC_STATE_SAFE_OP;
            ecx_writestate(&ecx_context, slave);
            ecx_statecheck(&ecx_context, slave, EC_STATE_SAFE_OP, 5000);
            if (ecx_context.slavelist[slave].state != EC_STATE_SAFE_OP)
            {
                ecx_readstate(&ecx_context);
                for(int i = 1; i <= *(ecx_context.slavecount) ; i++)
                {
                    if(ecx_context.slavelist[i].state != EC_STATE_SAFE_OP)
                    {

                    }
                }
            }
            ecx_readstate(&ecx_context);
            show_slave_info();

            inOP = FALSE;

            expectedWKC = (ec_group[0].outputsWKC * 2) + ec_group[0].inputsWKC;

            ecx_context.slavelist[slave].state = EC_STATE_OPERATIONAL;
            ecx_send_processdata(&ecx_context);
            wkc = ecx_receive_processdata(&ecx_context, EC_TIMEOUTRET);
            ecx_writestate(&ecx_context, slave);

            if (ecx_context.slavelist[slave].state == EC_STATE_OPERATIONAL)
            {
                inOP = TRUE;

                ec_send_processdata();
                wkc = ec_receive_processdata(EC_TIMEOUTRET);

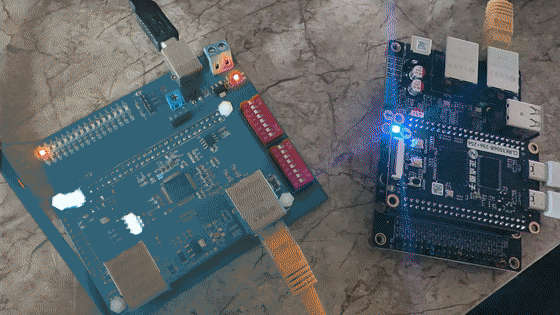

                while (inOP)
                {
                    switch(output_fsm){
                    case 0:
                        output_fsm=1;
                        *(ecx_context.slavelist[0].outputs)=1;
                        break;
                    case 1:
                        output_fsm=2;
                        *(ecx_context.slavelist[0].outputs)=2;
                        break;
                    case 2:
                        output_fsm=3;
                        *(ecx_context.slavelist[0].outputs)=4;
                        break;
                    case 3:
                        output_fsm=4;
                        *(ecx_context.slavelist[0].outputs)=8;
                        break;
                    case 4:
                        output_fsm=5;
                        *(ecx_context.slavelist[0].outputs)=16;
                        break;
                    case 5:
                        output_fsm=6;
                        *(ecx_context.slavelist[0].outputs)=32;
                        break;
                    case 6:
                        output_fsm=7;
                        *(ecx_context.slavelist[0].outputs)=64;
                        break;
                    case 7:
                        output_fsm=0;
                        *(ecx_context.slavelist[0].outputs)=128;
                        break;

                    }

                    ec_send_processdata();
                    wkc = ec_receive_processdata(EC_TIMEOUTRET);


                    osal_usleep(1000000);
                }

            }
            else
            {
                ecx_close(&ecx_context);
            }
        }
        else
        {
            printf("wkc is %d\r\n",wkc);
        }
    }
    else
    {
    	printf("ecx_config_init failed\r\n");
    }

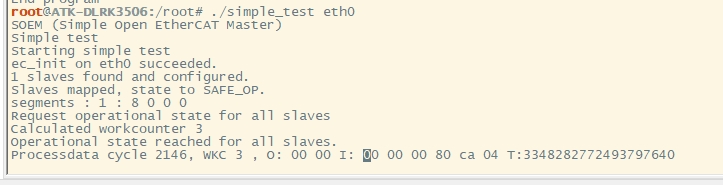

    printf("End Program\r\n");
    return 0;
}
