【RA4L1-SENSOR】+ RA4L1-SENSOR开发版之点灯实现流水灯跑马灯

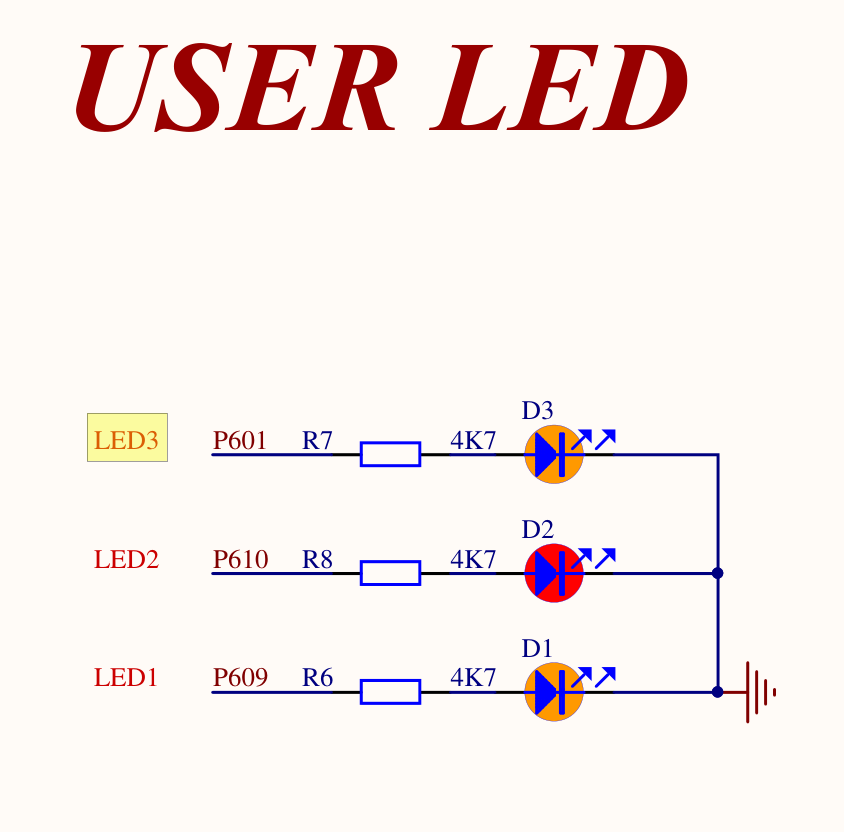

打开RA4L1的原理图，上面有3个LED灯

分别是
P601 -- LED3
P610 -- LED2
P609 -- LED1

任何人都知道，这3灯都是高电平 “1”点亮 “0”熄灭，不解释

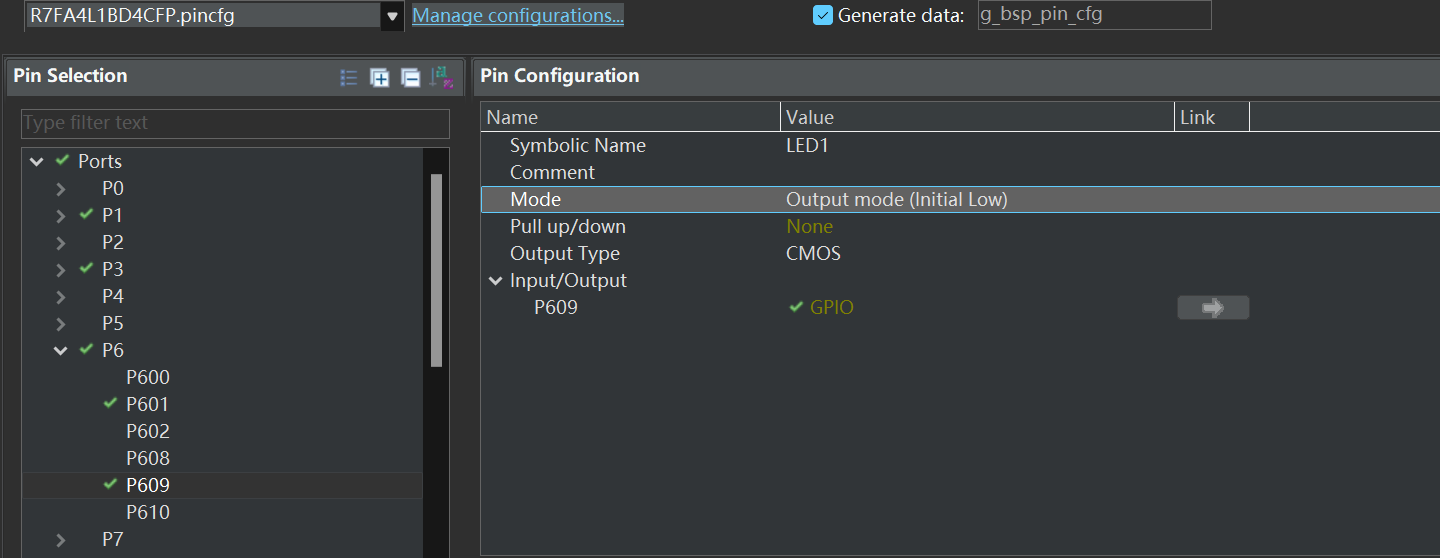

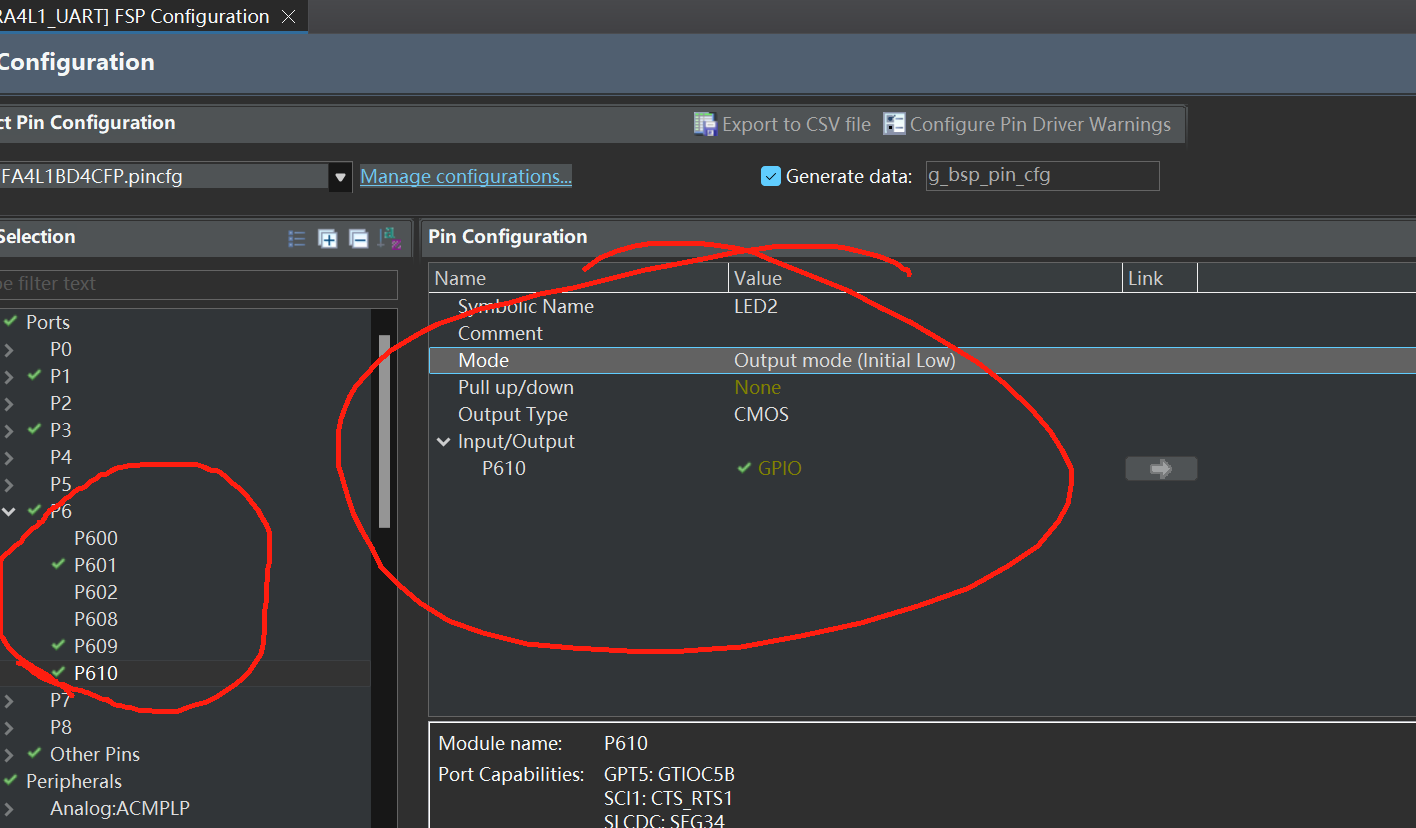

打开瑞萨的SMART配置软件进行IO配置

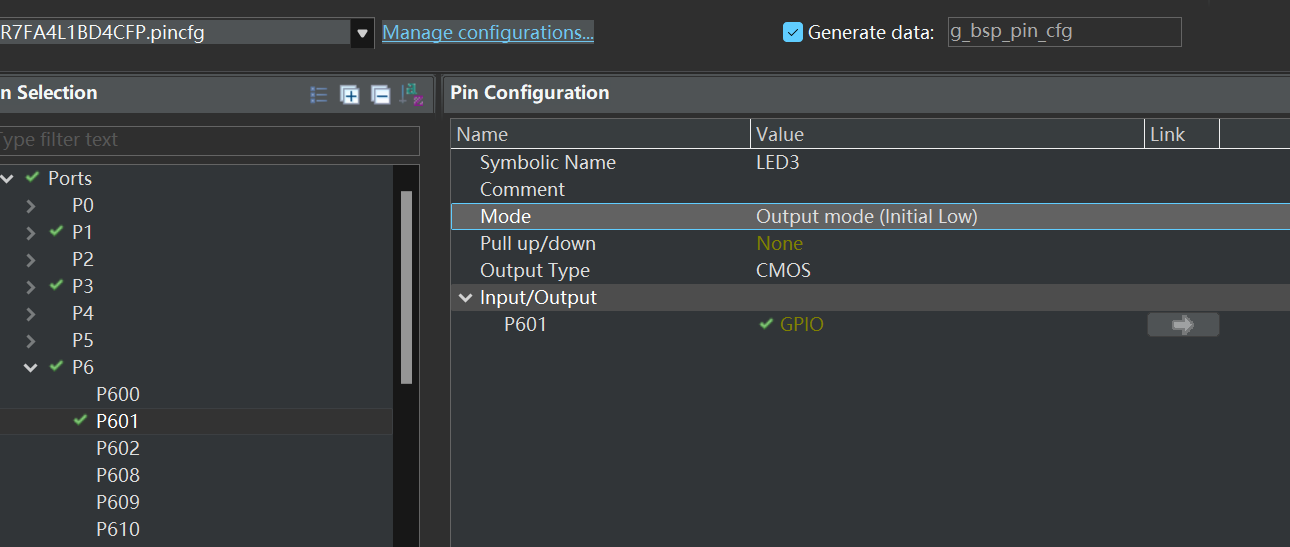

3灯配置完成

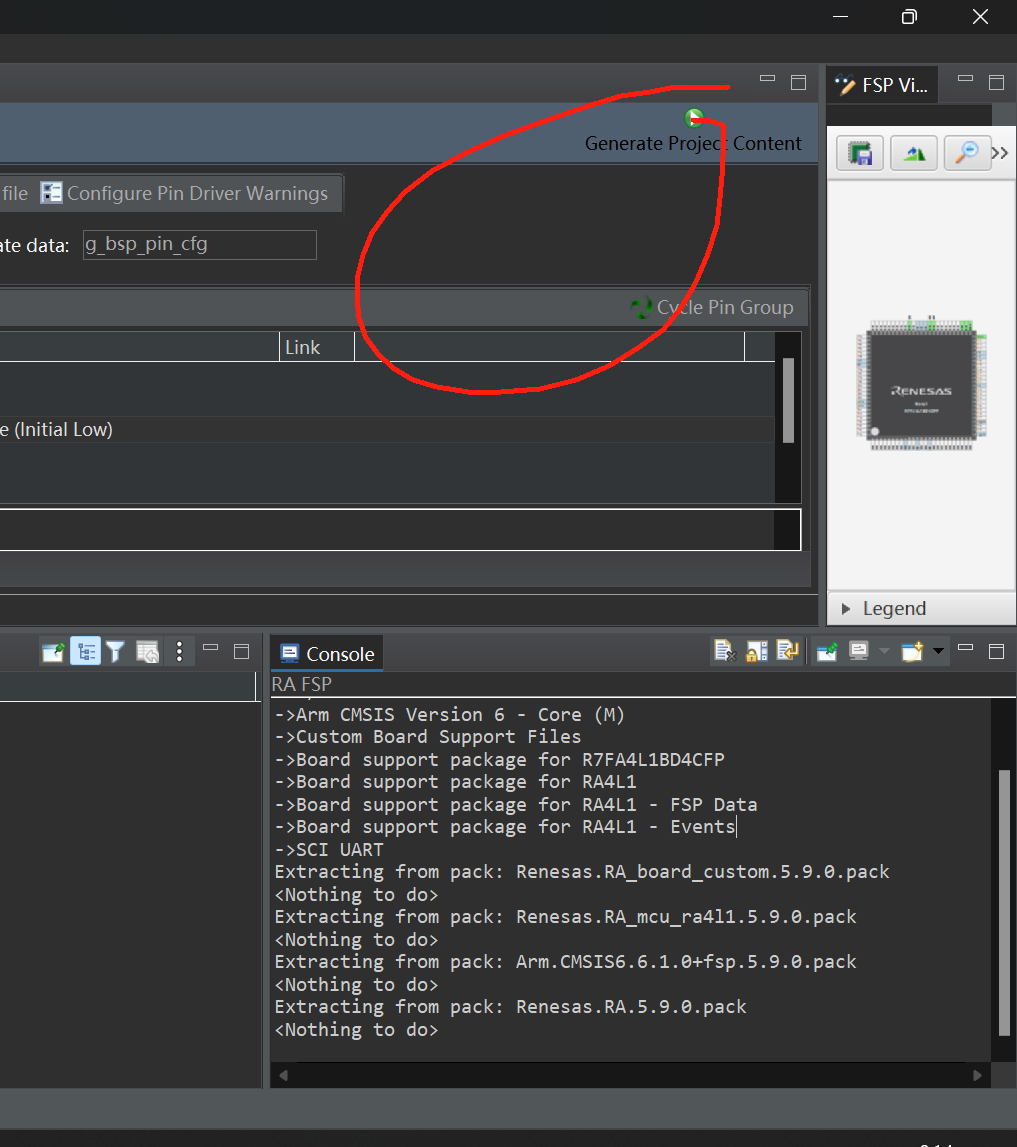

点击生成代码
默认我配置为熄灭

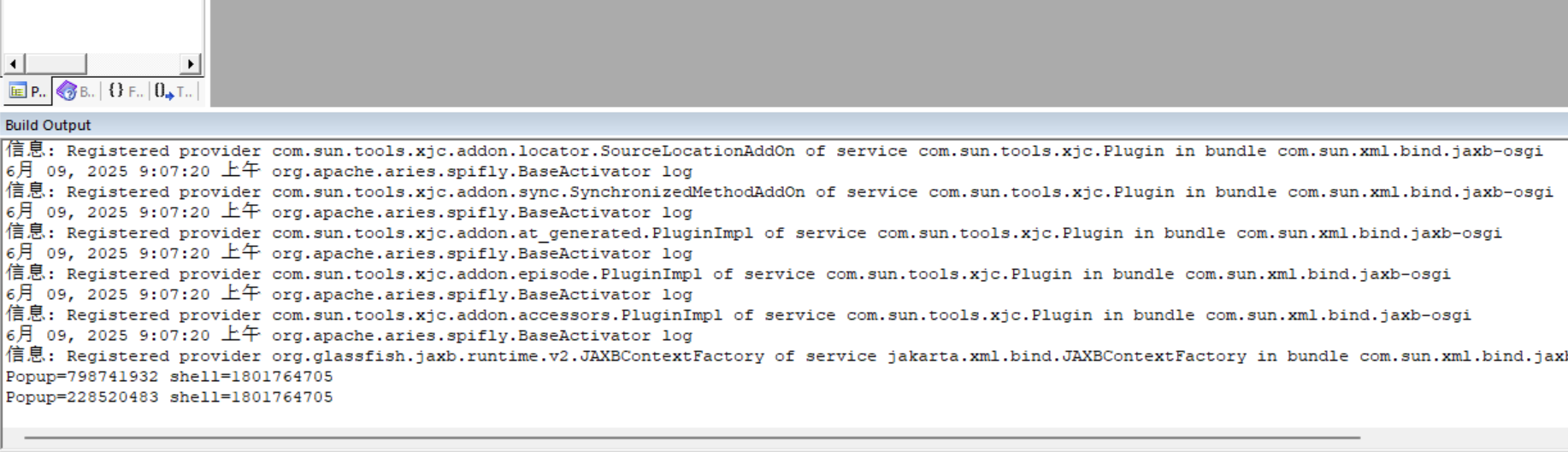

KEIL里面也显示smart生成软件生效了

修改LED功能代码

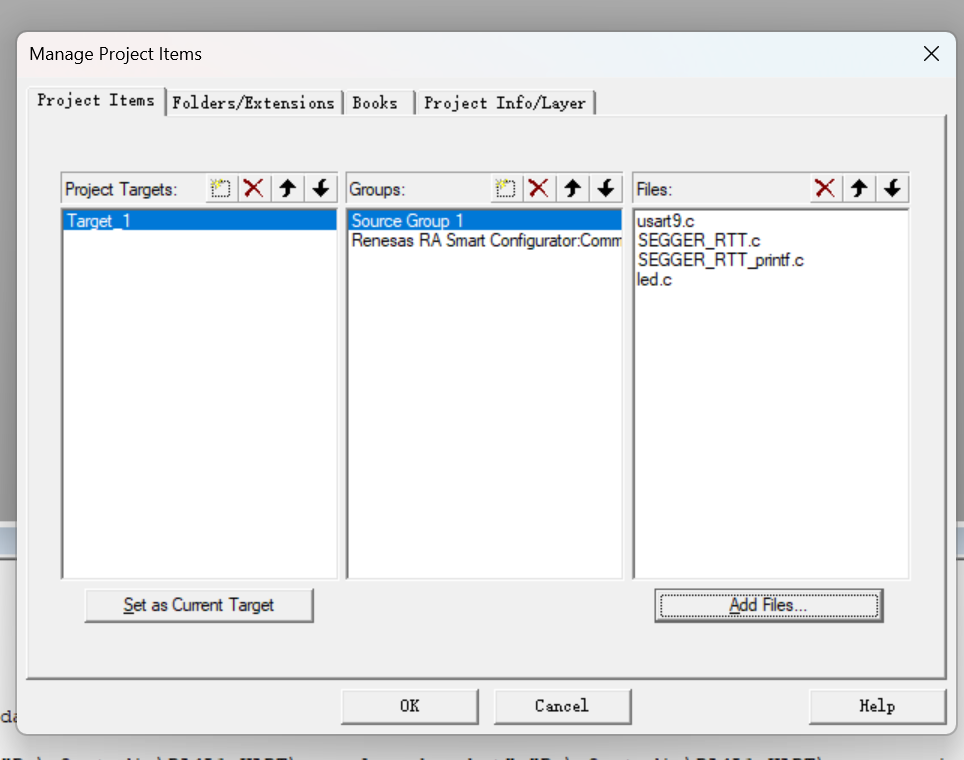

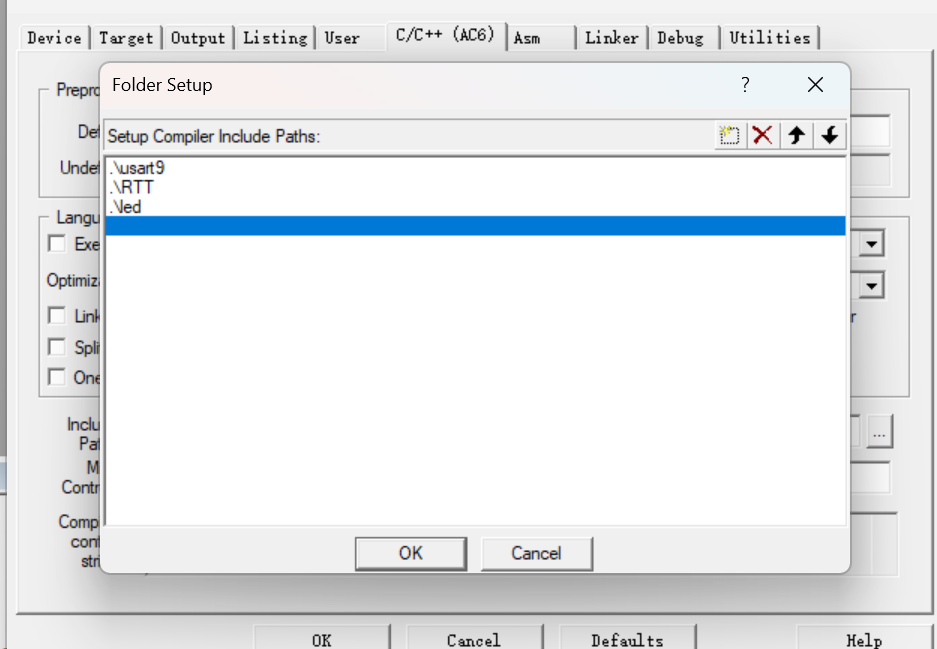

添加LED文件

4。添加LED头文件

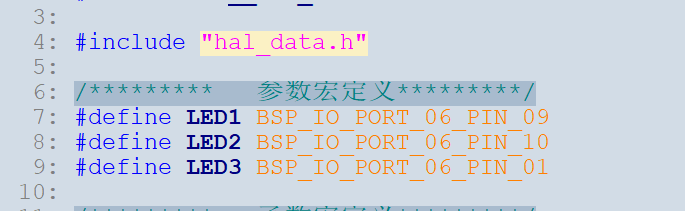

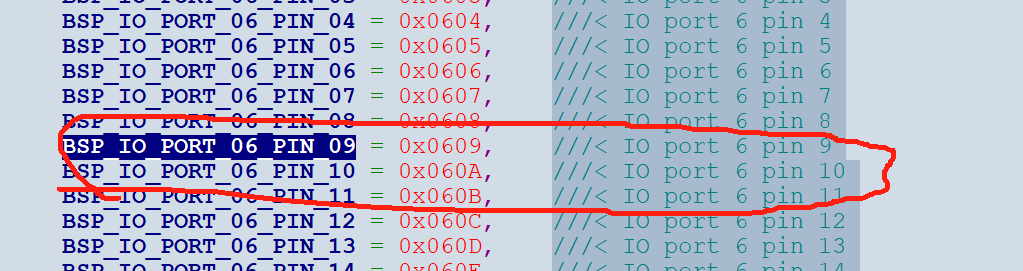

根据原理图引脚配置宏

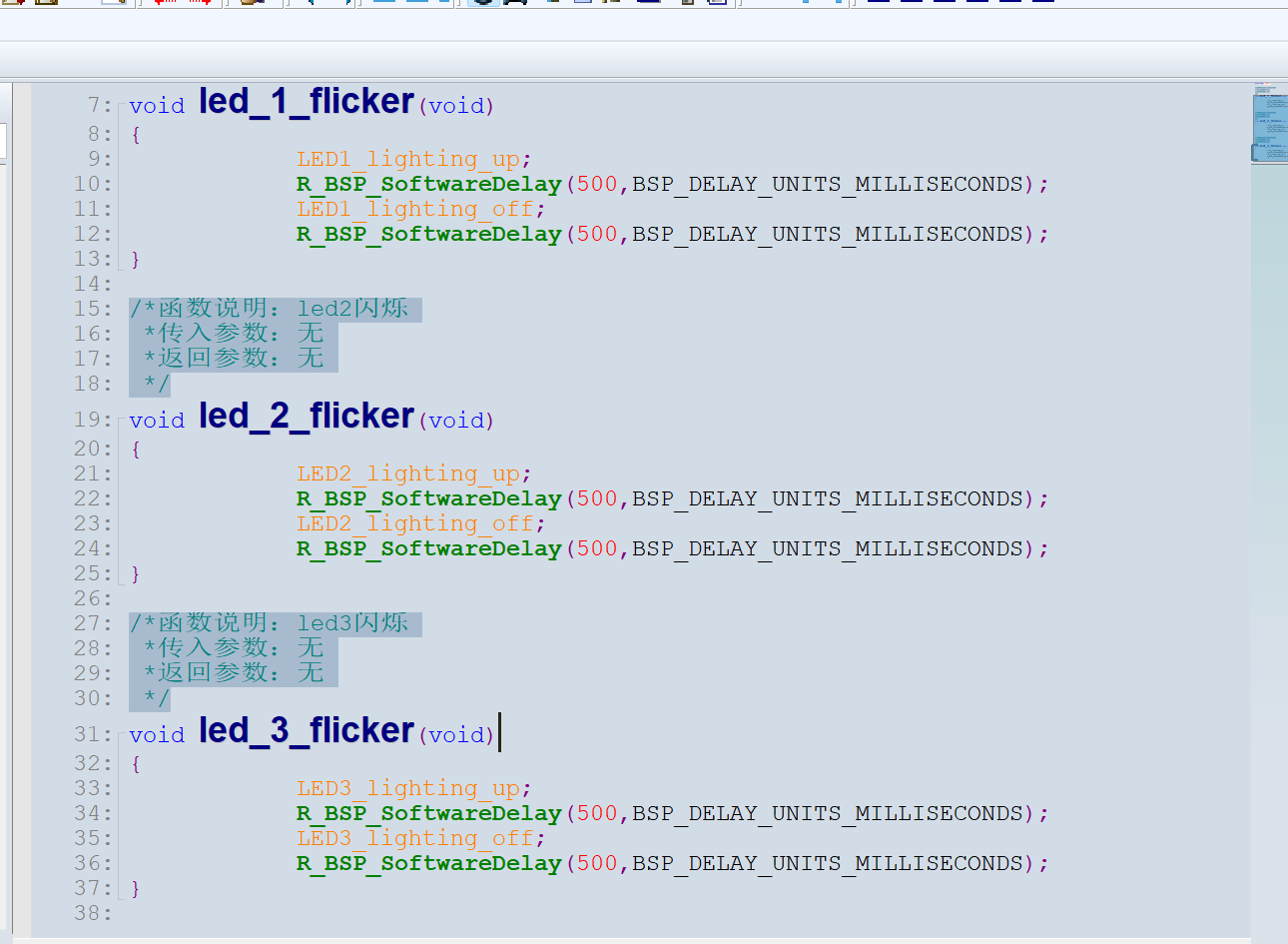

5。实现LED1LED2LED3功能函数
#include "led.h"

/*函数说明：led1闪烁
*传入参数：无
*返回参数：无
*/
void led_1_flicker(void)
{
LED1_lighting_up;
R_BSP_SoftwareDelay(500,BSP_DELAY_UNITS_MILLISECONDS);
LED1_lighting_off;
R_BSP_SoftwareDelay(500,BSP_DELAY_UNITS_MILLISECONDS);
}

/*函数说明：led2闪烁
*传入参数：无
*返回参数：无
*/
void led_2_flicker(void)
{
LED2_lighting_up;
R_BSP_SoftwareDelay(500,BSP_DELAY_UNITS_MILLISECONDS);
LED2_lighting_off;
R_BSP_SoftwareDelay(500,BSP_DELAY_UNITS_MILLISECONDS);
}

/*函数说明：led3闪烁
*传入参数：无
*返回参数：无
*/
void led_3_flicker(void)
{
LED3_lighting_up;
R_BSP_SoftwareDelay(500,BSP_DELAY_UNITS_MILLISECONDS);
LED3_lighting_off;
R_BSP_SoftwareDelay(500,BSP_DELAY_UNITS_MILLISECONDS);
}

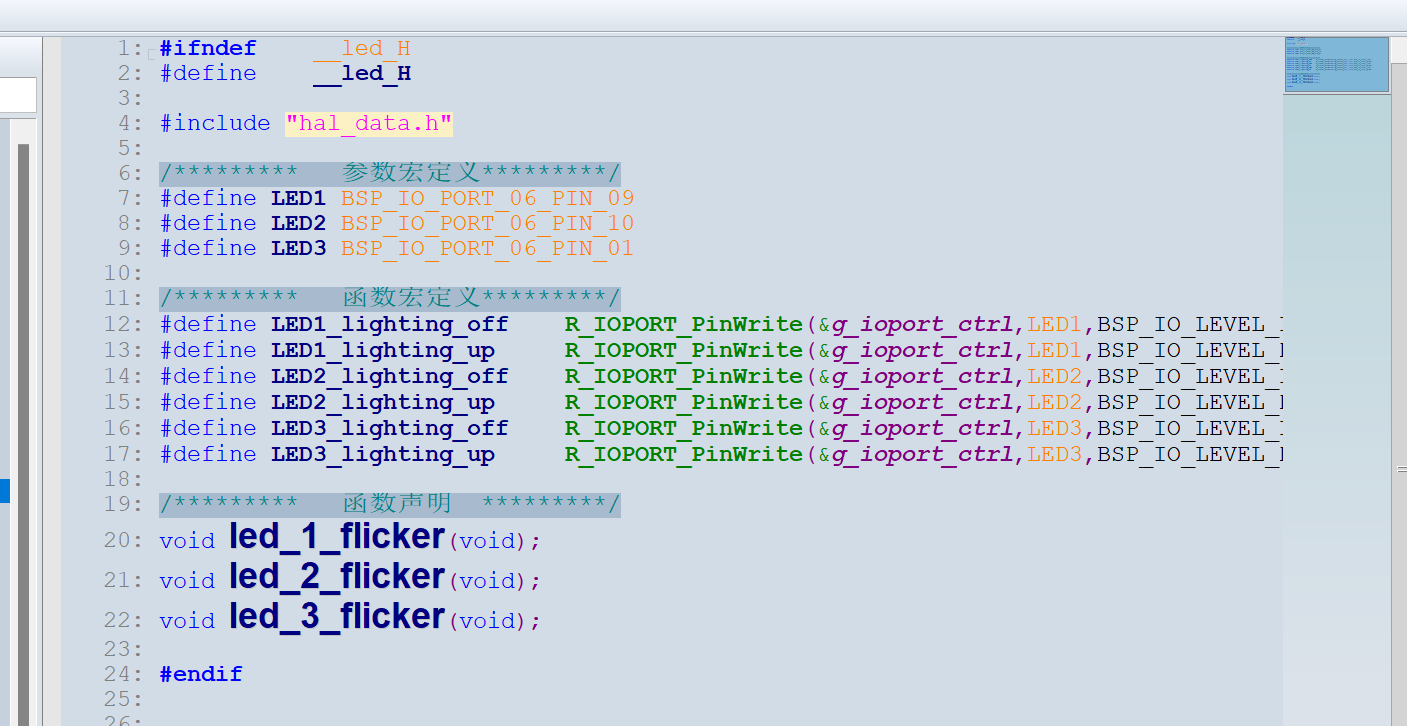

#ifndef __led_H
#define __led_H

#include "hal_data.h"

/********* 参数宏定义 *********/
#define LED1 BSP_IO_PORT_06_PIN_09
#define LED2 BSP_IO_PORT_06_PIN_10
#define LED3 BSP_IO_PORT_06_PIN_01

/********* 函数宏定义 *********/
#define LED1_lighting_off R_IOPORT_PinWrite(&g_ioport_ctrl,LED1,BSP_IO_LEVEL_LOW)
#define LED1_lighting_up R_IOPORT_PinWrite(&g_ioport_ctrl,LED1,BSP_IO_LEVEL_HIGH)
#define LED2_lighting_off R_IOPORT_PinWrite(&g_ioport_ctrl,LED2,BSP_IO_LEVEL_LOW)
#define LED2_lighting_up R_IOPORT_PinWrite(&g_ioport_ctrl,LED2,BSP_IO_LEVEL_HIGH)
#define LED3_lighting_off R_IOPORT_PinWrite(&g_ioport_ctrl,LED3,BSP_IO_LEVEL_LOW)
#define LED3_lighting_up R_IOPORT_PinWrite(&g_ioport_ctrl,LED3,BSP_IO_LEVEL_HIGH)

/********* 函数声明 *********/
void led_1_flicker(void);
void led_2_flicker(void);
void led_3_flicker(void);

#endif

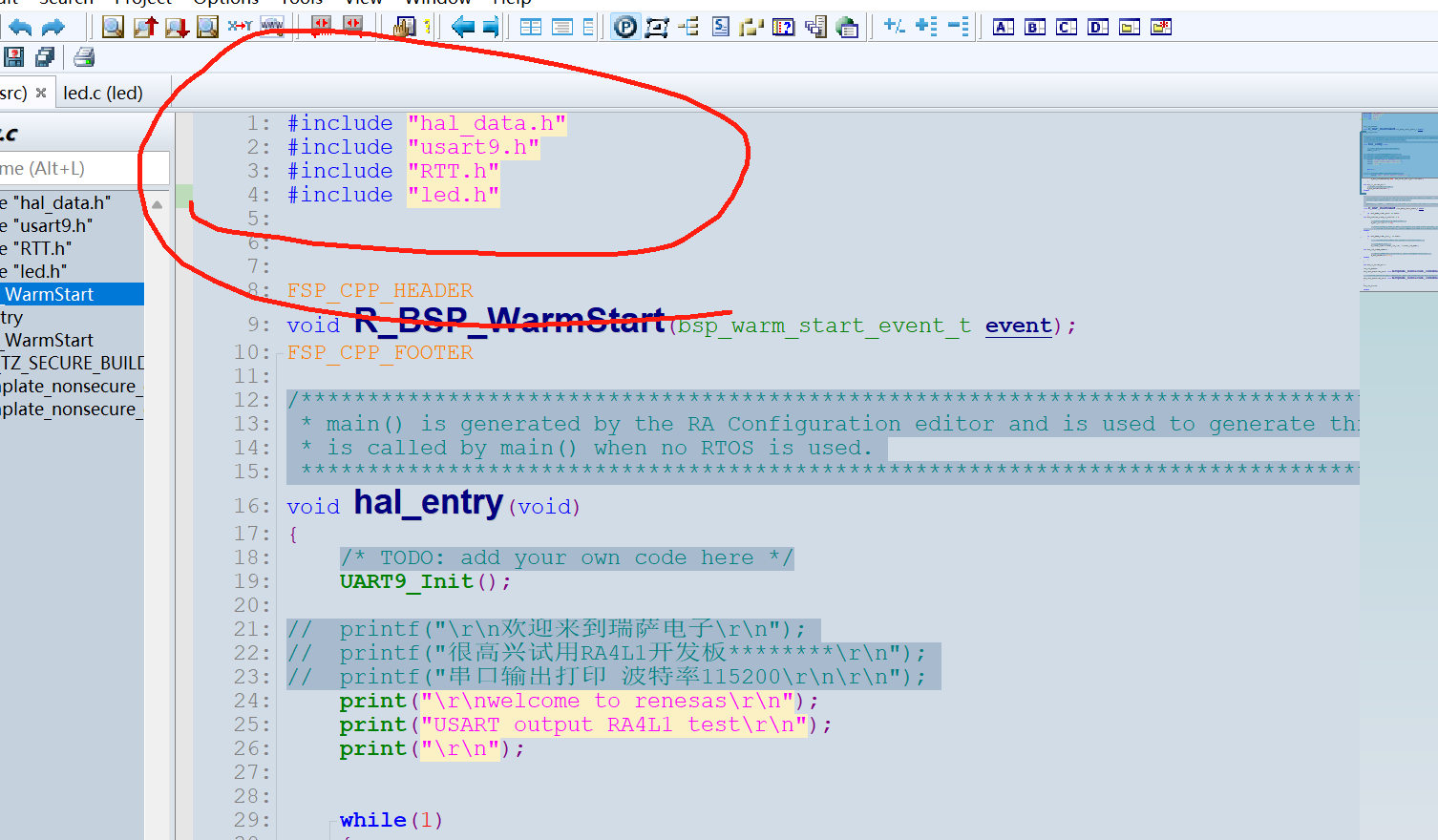

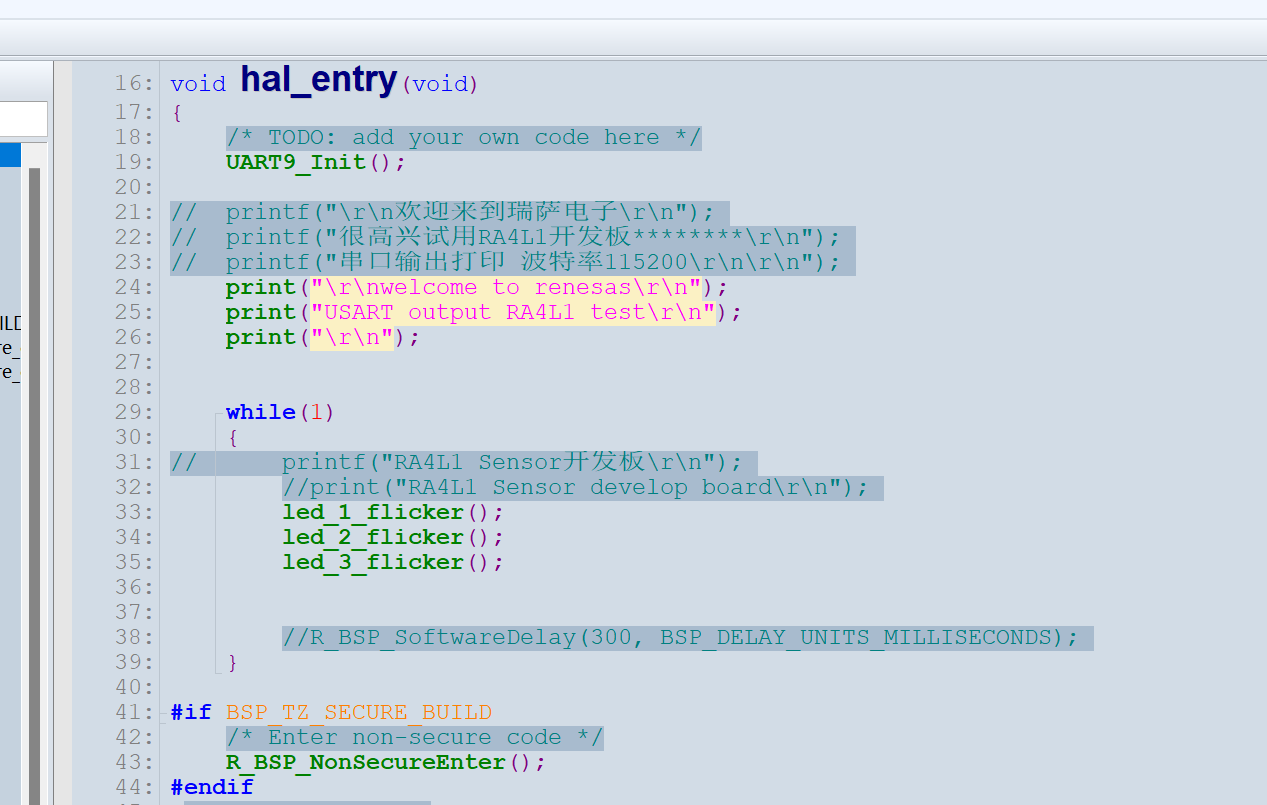

主函数中添加功能

#include "hal_data.h"
#include "usart9.h"
#include "RTT.h"
#include "led.h"

FSP_CPP_HEADER
void R_BSP_WarmStart(bsp_warm_start_event_t event);
FSP_CPP_FOOTER

/*******************************************************************************************************************//**

• main() is generated by the RA Configuration editor and is used to generate threads if an RTOS is used. This function
• is called by main() when no RTOS is used.
  *********************************************************************************************************************/
  void hal_entry(void)
  {
  / TODO: add your own code here */
  UART9_Init();

// printf("\r\n欢迎来到瑞萨电子\r\n");
// printf("很高兴试用RA4L1开发板********\r\n");
// printf("串口输出打印 波特率115200\r\n\r\n");
print("\r\nwelcome to renesas\r\n");
print("USART output RA4L1 test\r\n");
print("\r\n");

while(1)
{

// printf("RA4L1 Sensor开发板\r\n");
//print("RA4L1 Sensor develop board\r\n");
led_1_flicker();
led_2_flicker();
led_3_flicker();

//R_BSP_SoftwareDelay(300, BSP_DELAY_UNITS_MILLISECONDS);
}

#if BSP_TZ_SECURE_BUILD
/* Enter non-secure code */
R_BSP_NonSecureEnter();
#endif
}

/*******************************************************************************************************************//**

• This function is called at various points during the startup process. This implementation uses the event that is

• called right before main() to set up the pins.

• @param[in] event Where at in the start up process the code is currently at
  **********************************************************************************************************************/
  void R_BSP_WarmStart (bsp_warm_start_event_t event)
  {
  if (BSP_WARM_START_RESET == event)
  {
  #if BSP_FEATURE_FLASH_LP_VERSION != 0

  /* Enable reading from data flash. */
   R_FACI_LP->DFLCTL = 1U;

   /* Would normally have to wait tDSTOP(6us) for data flash recovery. Placing the enable here, before clock and
    * C runtime initialization, should negate the need for a delay since the initialization will typically take more than 6us. */


#endif
}

if (BSP_WARM_START_POST_C == event)
{
    /* C runtime environment and system clocks are setup. */

    /* Configure pins. */
    R_IOPORT_Open(&IOPORT_CFG_CTRL, &IOPORT_CFG_NAME);

#if BSP_CFG_SDRAM_ENABLED

/* Setup SDRAM and initialize it. Must configure pins first. */
    R_BSP_SdramInit(true);

#endif
}
}

#if BSP_TZ_SECURE_BUILD

FSP_CPP_HEADER
BSP_CMSE_NONSECURE_ENTRY void template_nonsecure_callable ();

/* Trustzone Secure Projects require at least one nonsecure callable function in order to build (Remove this if it is not required to build). */
BSP_CMSE_NONSECURE_ENTRY void template_nonsecure_callable ()
{

}
FSP_CPP_FOOTER

#endif

编译，烧录板子，可以看到LED1 LED2 LED3每隔500ms翻转

详情看视频！！！！！！
