分享一款不错的AKM AK4629高性能多路音频CODEC解决方案

1450 Codec 音频codec

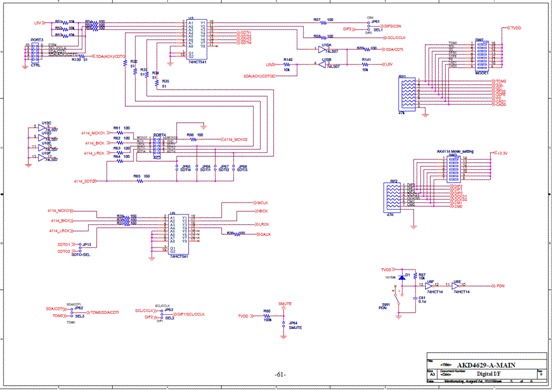

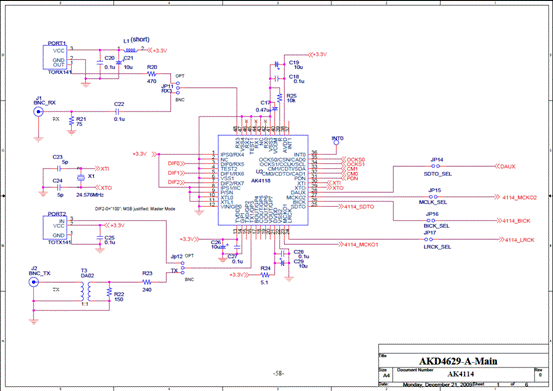

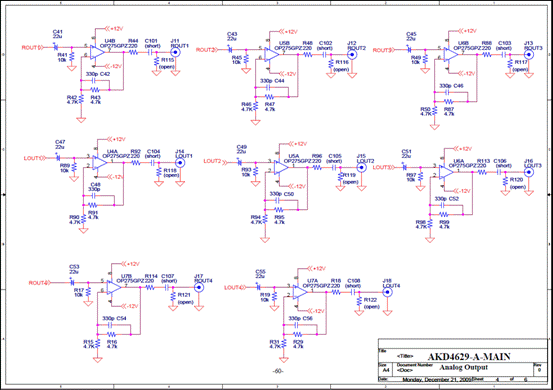

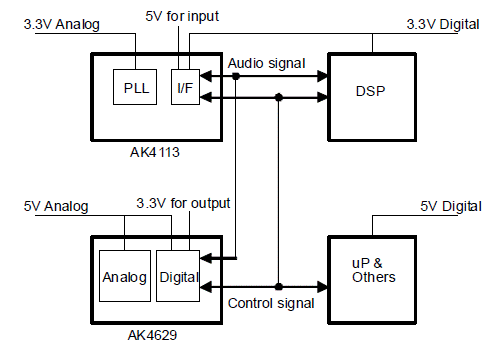

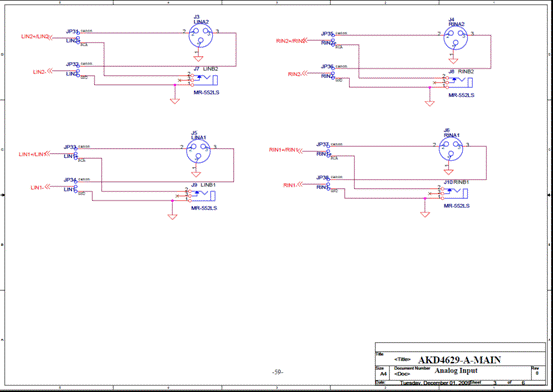

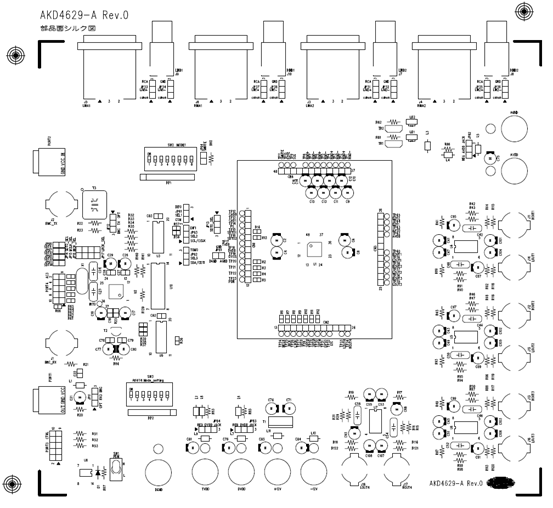

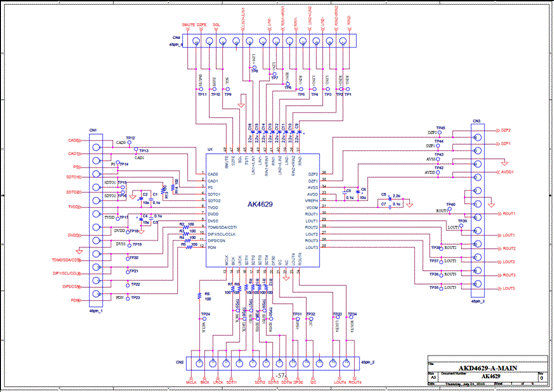

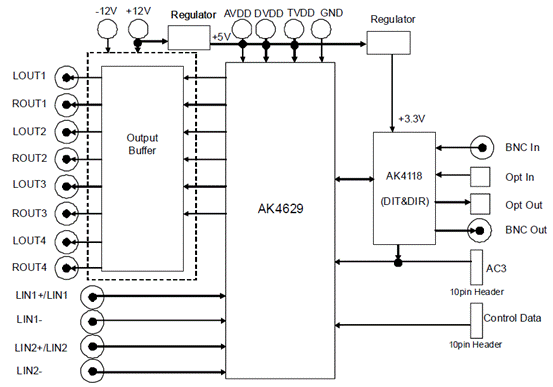

问答对人有帮助，内容完整，我也想知道答案 0 本文介绍了AK4629主要特性, 方框图, 典型应用电路图以及电源连接案例,AKD4629-A评估板主要功能,框图,电路图和元件布局图. 0
2021-6-1 07:04:38　　评论淘帖0 邀请回答您可以邀请以下用户，快速回答问题 × ChristineGu 该类别下有 16 个回答。邀请回答 HengDu 该类别下有 16 个回答。邀请回答 heks 该类别下有 16 个回答。邀请回答 dfasda 该类别下有 15 个回答。邀请回答 nhonglan 该类别下有 15 个回答。邀请回答 yonglanzhang 该类别下有 15 个回答。邀请回答杀狼000 该类别下有 14 个回答。邀请回答 wenminglang 该类别下有 14 个回答。邀请回答 C880U 该类别下有 14 个回答。邀请回答 jhdfvs 该类别下有 14 个回答。邀请回答 chm5 该类别下有 14 个回答。邀请回答 muwersddg 该类别下有 14 个回答。邀请回答 a732538 该类别下有 13 个回答。邀请回答 hrtuoyu 该类别下有 13 个回答。邀请回答 hfgdzc 该类别下有 13 个回答。邀请回答 thyysbk 该类别下有 13 个回答。邀请回答凡人wlj 该类别下有 13 个回答。邀请回答 kszdj113 该类别下有 13 个回答。邀请回答飞雪9366 该类别下有 13 个回答。邀请回答 billbian 该类别下有 13 个回答。邀请回答举报邢东相关推荐 • 分享一款不错的高性能音频解决方案 1039 • 分享一款不错的NXP车载CD解决方案 2278 • 分享一款不错的频综模块解决方案 1019 • 分享一款不错的GPS芯片解决方案 2353 • 分享一款不错的HDMI ARC音频传输方案 3917 • 怎么实现低功耗单芯片高性能音频CODEC的设计？ 1221 • 分享一款不错的TiWi－SL：2.4GHz WLAN解决方案 1431 • 分享一款不错的基于Pixart PAH8011ES穿戴式心跳量测解决方案解决方案 1412 • 分享一款不错的AKM AK4957 24位立体声CODEC解决方案 1271 • 分享一款不错的BP287X+BP851X系统解决方案 1867 1个回答

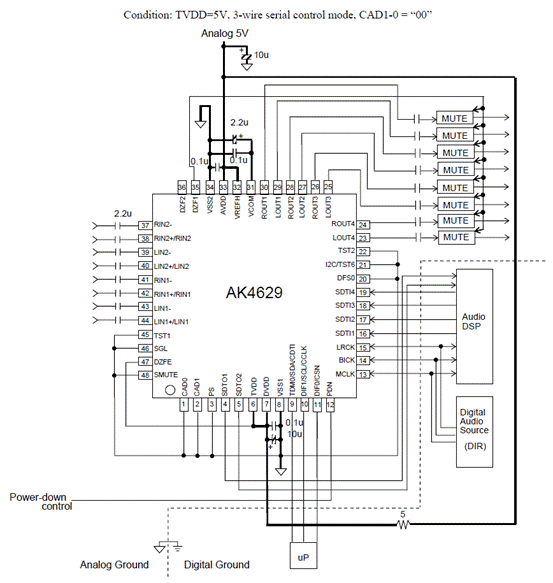

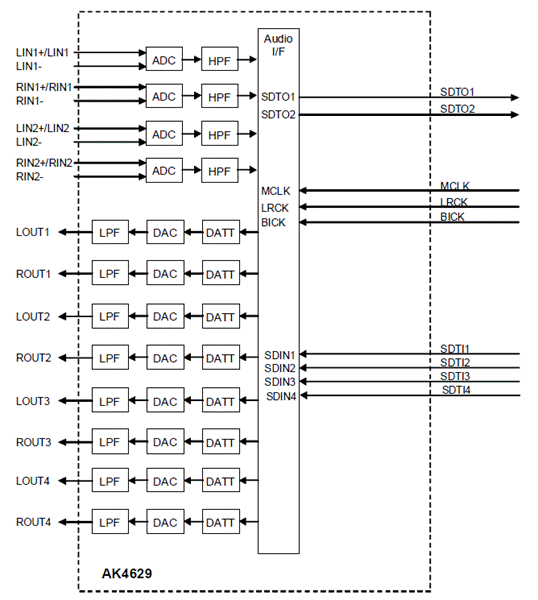

答案对人有帮助，有参考价值 0 AKM公司的AK4629是高性能多路音频CODEC,包括四路24位ADC和八路24位DAC通路,ADC采用增强双比特架构,DAC采用先进的多比特架构,具有非常低的噪音性能.ADC的取样速率高达96kHz,DAC的取样频率高达192kHz,ADC的S/(N+D)为92dB,动态范围S/N为102dB(单端输入),DAC的S/(N+D)为90dB,动态范围S/N为102dB,主要用在家庭影院,pro audio音响和汽车音响设备.本文介绍了AK4629主要特性, 方框图, 典型应用电路图以及电源连接案例,AKD4629-A评估板主要功能,框图,电路图和元件布局图. AK4629: High Performance Multi-channel Audio CODEC The AK4629 is a single chip audio CODEC that includes four ADC channels and eight DAC channels. The converters are designed with Enhanced Dual Bit architecture for the ADC’s, and Advanced Multi-Bit architecture for the DAC, enabling very low noise performance. The AK4629 ADC supports both single-ended and differential inputs and outputs. A wide range of applications can be realized, including home theater, pro audio and car audio. The AK4629 is available in a 48-pin LQFP package. AK4629主要特性: 4ch 24bit ADC - 64x Oversampling - Sampling Rate up to 96kHz - Linear Phase Digital Anti-Alias Filter - Single-ended / Differential Input - S/(N+D): 92dB (Single-ended, Differential) - Dynamic Range, S/N: 102dB (Single-ended), 103dB (Differential) - Digital HPF for offset cancellation - I/F format: MSB justified, I2S or TDM 8ch 24bit DAC - 128x Oversampling - Sampling Rate up to 192kHz - 24bit 8 times Digital Filter - Single-ended Outputs - On-chip Switched-Capacitor Filter - S/(N+D): 90dB - Dynamic Range, S/N: 106dB - I/F format: MSB justified, LSB justified(20bit,24bit), I2S or TDM - Individual channel digital volume with 128 levels and 0.5dB step - Soft mute - De-emphasis for 32kHz, 44.1kHz and 48kHz - Zero Detect Function High Jitter Tolerance TTL Level Digital I/F 3-wire Serial and I2C Bus μP I/F for mode setting Master clock: 256fs, 384fs or 512fs for fs=32kHz to 48kHz 128fs, 192fs or 256fs for fs=64kHz to 96kHz 128fs for fs=120kHz to 192kHz Power Supply: 4.5 to 5.5V Power Supply for output buffer: 2.7 to 5.5V Small 48pin LQFP 20110808101802726.gif 图1. AK4629方框图 20110808101803206.gif 图2. AK4629典型应用电路图 20110808101803524.gif 图3. AK4629电源连接案例 AKD4629-A评估板 The AKD4629-A is an evaluation board for the AK4629, a single chip CODEC that includes four channels of ADC and six channels of DAC. The AKD4629-A also has the digital audio interface and can achieve the interface with digital audio systems via opt-connector or BNC connector. AKD4629-A评估板功能: • On-board analog output buffer circuit • Compatible with 2 types of interface - AK4118 (DIT&DIR) with optical output/input and BNC output/input - Direct interface with AC3 decoder by 10pin header • 10pin header for serial control interface 20110808101803174.gif 图4.AKD4629-A评估板方框图 20110808101804134.gif 图5.AKD4629-A评估板电路图(1) 20110808101804326.gif 图6.AKD4629-A评估板电路图(2) 20110808101804112.gif 图7.AKD4629-A评估板电路图(3) 20110808101805477.gif 图8.AKD4629-A评估板电路图(4) 20110808101806227.gif 图9.AKD4629-A评估板电路图(5) 20110808101806114.gif 图10.AKD4629-A评估板电路图(6) 20110808101807612.gif 图11.AKD4629-A评估板元件布局图详情请见: http://www.asahi-kasei.co.jp/akm/en/product/ak4629/ak4629_f00e.pdf 和 http://www.asahi-kasei.co.jp/akm/en/product/ak4629/akd4629-a1-01e.pdf[
