rtl8723bu下面红色接点如何接？

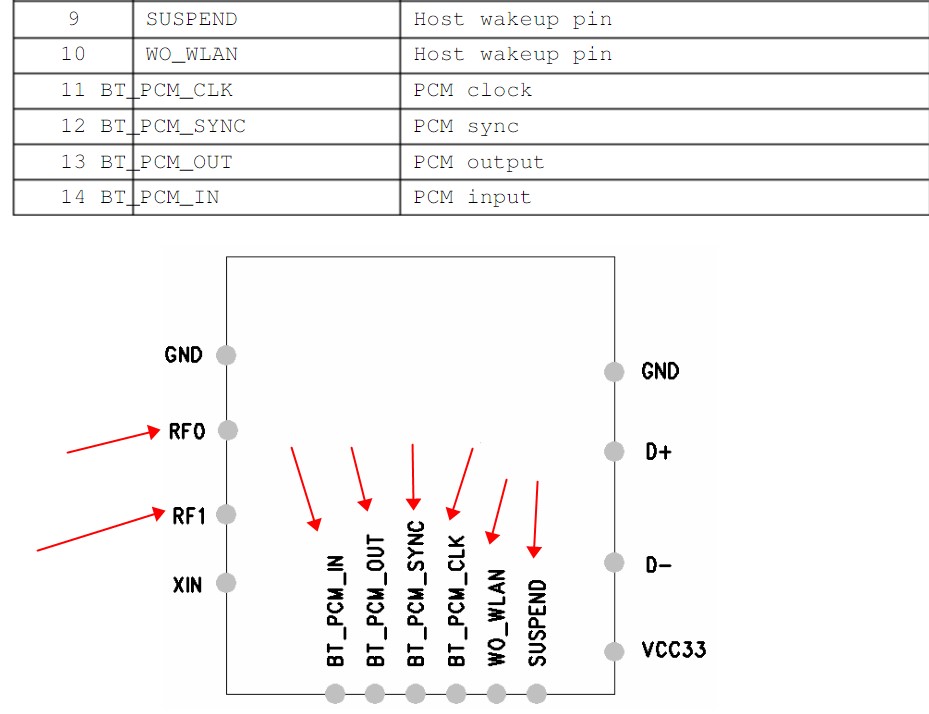

RF是射频信号，通常用于接天线，连USBpcm就不用接了，把使能脚和唤醒脚接上就好了

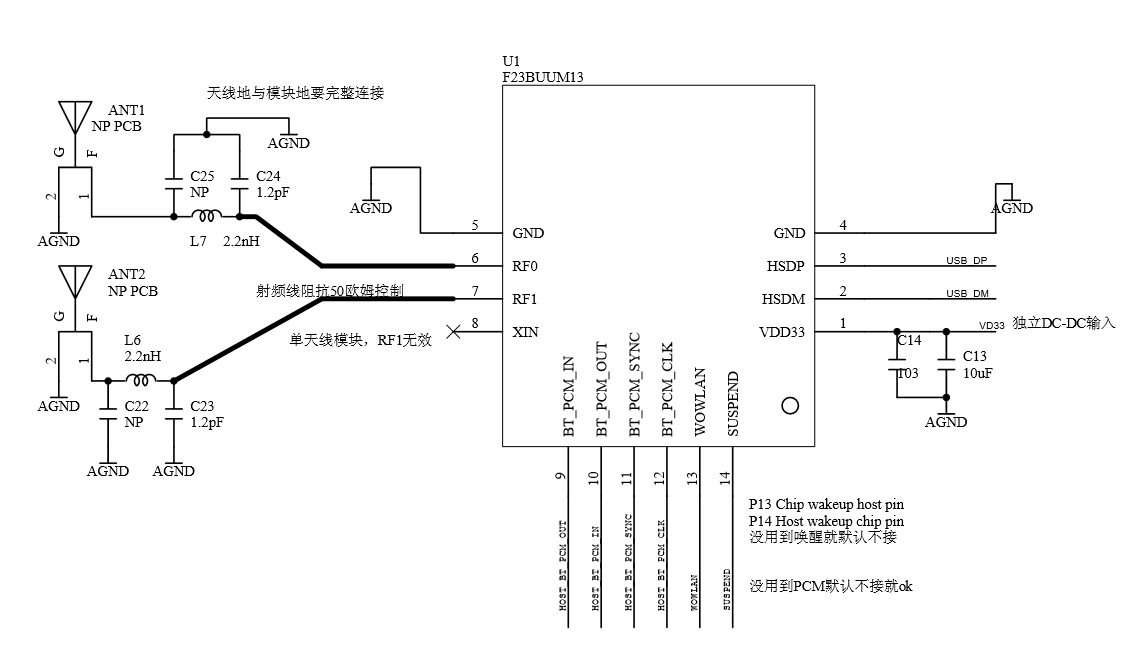

嗨,可參考以下電路

其中6和7為天線
而P13和P14為喚醒功用,讓Wifi不工作時候能夠降低功耗,視需求
其他BT相關的9~12為PCM,是通訊界面,USB/PCM擇一,所以PCM可不接




Product  model

• F23BUUM13-W2


Interface type

• USB2.0

• PCM


Work channel

• WIFI: 1-13(default Channel Plan WW13,other Channel Plan optional) 11: (Ch. 1-11) – United States(North America)
  13: (Ch. 1-13) – Europe
  14: (Ch. 1-14) – Japan

• BT: CH.0~78


Frequency range

• 2.4GHz-2.4835GHz


Modulation mode

• OFDM/CCK/QPSK/BPSK


Transmission speed

• WIFI

• 802.11b: 11,5.5,2,1 Mbps

• 802.11g:54,48,36,24,18,12,9,6Mbps

• 802.11n:up to 150Mbps

• BT:

• 1 Mbps for Basic Rate

• 2,3 Mbps for Enhanced Data Rate

• 6,9,12,18,24,36,48,54 Mbps for High Speed


Receiving sensitivity

• 802.11b@8% PER
  802.11g@10% PER
  802.11n@10% PER


Working voltage

• 3.3V


Working modeWIFI

• Ad-hoc mode (Peer-to-Peer )
  Infrastructure mode
  Software AP
  WiFi Direct


BT

• Pico Net Scatter Net


Support operating system

• Support Windows/Linux/Android operatin system


Mode size

• 13.0*12.2*1.6mm


Use environment

• Working environment：0℃～70℃

• Working humidity：10%～90%RH Non condensing

• Storage temperature：-40℃～80℃

• Storage humidity：5%～90%RH Non condensing


以上供參考
