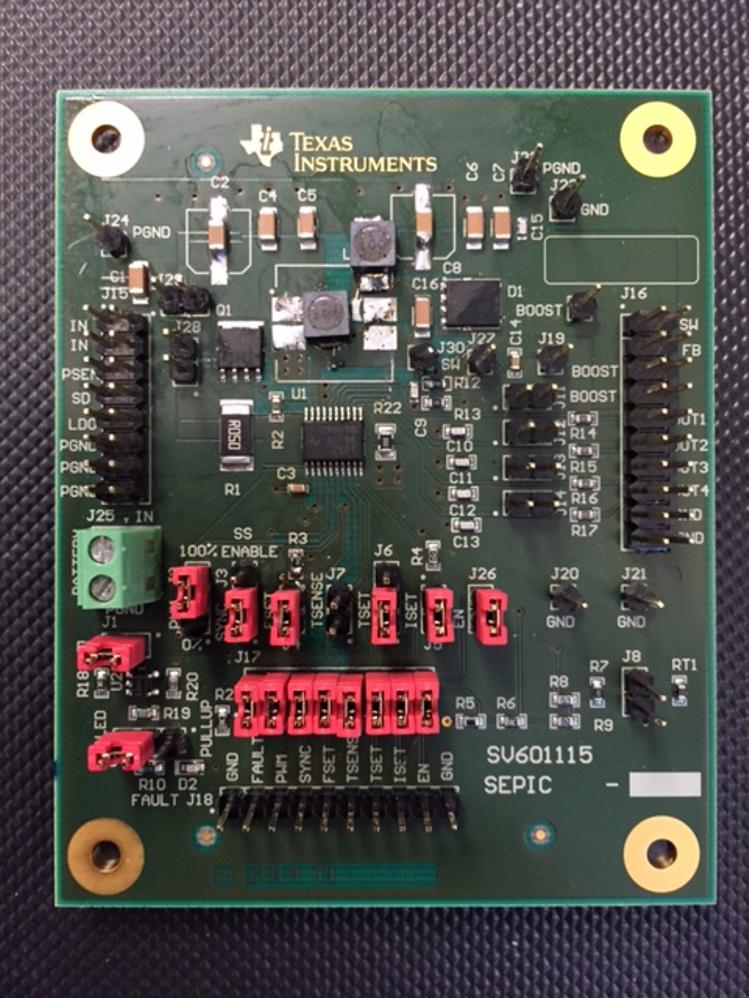

The tiDA-00503 refrence design is a SEPIC mode LED driver design for automotive backlight applications with 2 or 3 LEDs in series. SEPIC enables VIN both above and below VOUT. The LED driver operates at a switching frequency of 2.2MHz for a small overall footprint and all components are limited to (...)
主要特色
Wide VIN range 4.5-40V
Dimming ratio 10000:1 @ 200Hz PWM
Small solution size enabled by 2.2 MHz operation
Flexible support for different LED configurations
EMI mitigation with optional spread spectrum and external sync
